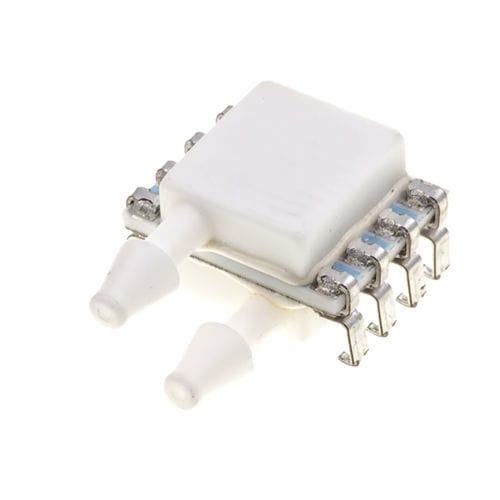

Pressure transducer MEAS MS4525

vacuum pressureanalog

Product summary
The MS4525 is a compact ceramic-based PCB-mounted analog pressure transducer. Fully calibrated and temperature compensated (total error band <1.0% over the compensated range). Operates from a single 3.3 V or 5.0 V supply and requires a single external component. Available in side-port, top-port and manifold-mount variants. Measures absolute, gauge, differential or compound pressure from 1 to 150 psi. 1/8 in barbed pressure ports mate with 3/32 in ID tubing.

Product family / Series

• Product family: MEAS
• Series / Model: MS4525

Benefits / Key features

• PCB-mounted pressure transducer in ceramic package
• Amplified ratiometric analog output (variant-dependent)
• Pressure types: differential, gauge, absolute, compound, vacuum
• Temperature compensated over specified range
• Single-supply operation: 3.3 V or 5.0 V
• Pressure ranges available: 1 to 150 psi
• High-level analog output (example spans: 10–90% Vdc or 5–95% Vdc)
• 1/8 in barbed pressure ports (fits 3/32 in ID tubing)

Product features (summary)

• Leg style: J style through-hole
• Sensor package: 8-pin DIL or 8-pin SMD
• Pressure sensor type: analog pressure sensor module
• Pressure type options: Absolute, Compound, Differential, Gauge, Vacuum

Electrical characteristics (excerpt)

• Supply current: ~3 mA (typical)
• Supply voltage: 3.3 V or 5.0 Vdc

Dimensions (selected values)

• Width (mm): 9.9 | 17.4 | 20.3
• Width (in): 0.389 | 0.39 | 0.685 | 0.69 | 0.799
• Length (mm): 12.4 | 12.7 | 17.4
• Length (in): 0.49 | 0.5 | 0.685
• Height (mm): 4.4 | 7.2 | 8.2 | 9 | 11.7 | 11.95 | 15.3 | 19.5
• Height (in): 0.173 | 0.283 | 0.322 | 0.35 | 0.46 | 0.47 | 0.6 | 0.767

Usage conditions & pressure ranges

• Pressure (psi) examples: 1 | 2 | 5 | 15 | 30 | 50 | 100 | 150
• Pressure (bar) examples: 0.068 | 0.344 | 0.345 | 1.034 | 2.068 | 3.44 | 6.89
• Operating temperature range: -25 to 105 °C (-13 to 221 °F)

Operation / Application details

• Output interfaces: amplified ratiometric analog (majority of variants); some variants provide digital I2C — check datasheet per variant
• Supported pressure units: psi, bar, mmH2O, inH2O, mmHg (variant-dependent)
• Example output spans: 10–90% Vdc or 5–95% Vdc (variant-dependent)
• Typical pressure accuracy: ±0.25% span (variant-dependent)

Packaging & options

• Sensor port configurations: dual sideport, single sideport, top port
• Options: gel coating or no coating
• Mounting: PCB-mounted, through-hole (J style) or SMD

Example variants

• TE Part: 20005831-01 — Model: 4525-TP5B030APF — Type: Absolute — Proof: 300 psi — Output: 5–95% Vdc — Supply: 5 V — Gel coating
• TE Part: 20008347-00 — Model: 4525-SS5A015VP — Type: Vacuum (2×FS) — Output: 10–90% Vdc — Supply: 5 V — No option
• Model: 4525-DS3A001DP — Type: Differential — Proof: 1 psi — Output: 10–90% Vdc — Supply: 3.3 V — No option
• Model: 4525-TP5A005GSF — Type: Gauge — Proof: 300 psi — Output: 10–90% Vdc — Supply: 5 V — Gel coating

Datasheet / Documents
Datasheet and application notes are available for the MS4525 family. Refer to the MS4525 datasheet and MS45xx application notes for complete electrical, mechanical and ordering details.

Technical specifications

• Series / Model: MS4525
• Product family: MEAS
• Sensor type: ceramic-based PCB-mounted pressure transducer
• Pressure types: Absolute, Gauge, Differential, Compound, Vacuum
• Pressure ranges: 1 to 150 psi (multiple variants)
• Proof pressure options: 1 psi | 250 | 2×FS | 300 psi | 5×FS (variant-dependent)
• Output: amplified ratiometric analog; example spans 10–90% Vdc or 5–95% Vdc; some variants reference I2C
• Supply voltage: 3.3 V or 5.0 Vdc
• Supply current: ~3 mA (typical)
• Accuracy: typical ±0.25% span (variant-dependent)
• Operating temperature: -25 to 105 °C (-13 to 221 °F)
• Mechanical: ceramic transducer; 1/8 in barbed pressure ports (fits 3/32 in ID tubing)
• Package / mounting: PCB-mounted; J-style through-hole or 8-pin SMD
• Options: gel coating or no option
