Overview

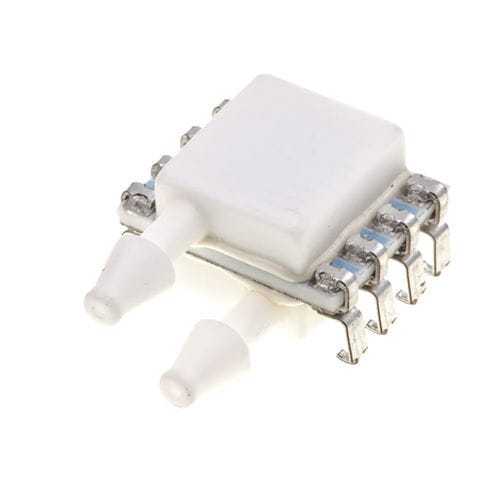

The MS4515DO is a ceramic-based PCB-mounted digital pressure and temperature transducer designed for compact instrumentation and OEM integration. It delivers 14-bit digital pressure output and 11-bit temperature, is factory-calibrated and temperature-compensated, and supports absolute, differential and gauge measurements across low-pressure ranges (2–30 inH2O). The device accepts 3.3 V or 5.0 V supply and requires minimal external components.

Benefits

• Compact PCB-mounted digital output transducer for OEM use
• Combined pressure and temperature measurement in a single module
• Selectable digital interfaces (I2C or SPI) for easy integration
• Variants for differential, gauge or absolute pressure measurement
• Temperature compensation and factory calibration (TEB < 1.0% typical)
• Low-power options available (standby < 1 µA)

Product Features (summary)

• Mounting: Through-hole (J-style) on 8-pin DIL package
• Output resolution: 14-bit pressure; 11-bit temperature
• Interfaces: I2C (multiple addresses) and SPI (Mode 0/3) variants
• Pressure types supported: Absolute, Compound, Differential, Gauge, Vacuum
• Pressure ranges: 2 | 4 | 5 | 10 | 20 | 30 inH2O (examples)
• Barbed ports: 1/8" (mates with 3/32" ID tubing)

Electrical & Performance

• Supply voltage: 3.3 V or 5.0 V
• Supply current: ~3 mA typical; low-power variants with standby < 1 µA
• Output: Digital (I2C or SPI), 14-bit ADC resolution options
• Accuracy: ±0.25% span (pressure); Total Error Band < 1.0% over compensated range
• Integrated temperature sensor: 11-bit

Mechanical / Packaging

• Package: 8-pin DIL, J-style through-hole legs
• Port configuration: single sideport, dual sideport, top port or manifold mount
• Barbed pressure ports suitable for 3/32" ID tubing
• Typical module dimensions vary by variant (examples provided by manufacturer)

Usage conditions & ranges

• Offered pressure ranges (inH2O): 2 | 4 | 5 | 10 | 20 | 30
• Equivalent mmH2O ranges: 50.8 | 101 | 127 | 254 | 508 | 762
• Other example ranges: psi and bar options available depending on variant
• Operating temperature: variant-dependent (example ranges −25–105 °C or −10–85 °C)
• Proof pressure and overpressure ratings vary by variant (see datasheet)

Variants / Typical product variant table

• Example TE Part #: 10214057-00 — Differential — 50.8 mmH2O — 3.3 V — −10–85 °C — Gel coating & Low Power
• Example TE Part #: 20006162-03 — Gauge — 101 mmH2O — 3.3 V — −10–85 °C — Low Power
• Example: 4515DO-DS3AI002DP — Differential — 50.8 mmH2O — 3.3 V — −10–85 °C — No option

Other

• Available options: Gel coating, Low Power, Gel Coating + Low Power, or No Option
• Suitable for OEM sensors, portable instruments and applications requiring compact digital pressure sensing

Technical specifications

• Model / Series: MS4515DO
• Sensor type: Ceramic-based PCB-mounted digital pressure & temperature transducer
• Pressure resolution / output: 14-bit ADC; I2C or SPI digital outputs
• Supply voltage: 3.3 V or 5.0 V; supply current ~3 mA (typical)
• Operating temperature: variant-dependent (e.g. −25–105 °C or −10–85 °C)
• Proof pressure: up to 300 psi or specified multiples of full scale (variant-dependent)
• Accuracy: ±0.25% span (pressure)
• Package / mounting: 8-pin DIL, J-style through-hole
• Ports: 1/8" barbed ports (fits 3/32" ID tubing); top, side or manifold mount options
