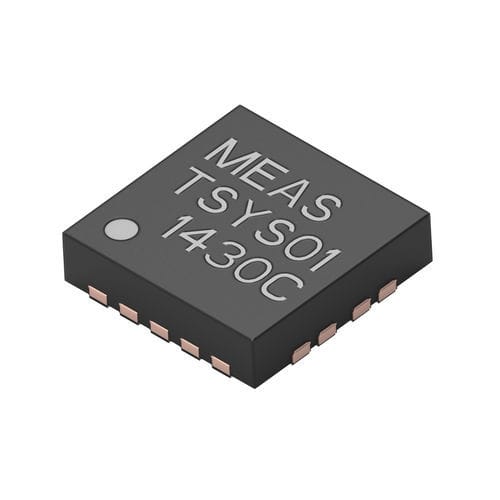

Temperature sensor MEAS TSYS

medicalminiaturesmall form factor

Product Overview
Digital temperature sensor G-NICO-018 (alias TSYS01). QFN16 SMD package offering ±0.1 °C accuracy at reference temperature. Resolution options: 16-bit or 24-bit. Output interfaces: I2C or SPI.

Key Features

• Accuracy: ±0.1 °C (at T_ref)
• Resolution: 16-bit or 24-bit
• Output interfaces: I2C or SPI
• Package: QFN16, SMD
• Low operating current: typ./max values for embedded applications

Electrical Characteristics

• Supply voltage: 2.2 – 3.6 V
• Supply current (Max): 12.5 µA

Mechanical / Environmental

• Package dimensions: 4 mm × 4 mm × 0.85 mm
• Operating temperature range: -40 – 125 °C

Available Documents (names)

• 3D_CVM_CVM_G-NICO-018_1.pdf (Customer View Model, 3D)
• ENG_DS_TSYS01_A2.pdf (Datasheet TSYS01)

Related / Family
Part of the MEAS TSYS digital temperature sensor family. Related devices are available in QFN, XDFN and TDFN packages for various resolution and interface options.

Technical Specifications

• TE Internal #: G-NICO-018
• Alias #: TSYS01
• Product description: 0.1 DEG C ACCURACY QFN TEMP SENSOR
• Product family / series: MEAS / MEAS TSYS
• Sensor package: QFN16
• Electrical connection: SMD
• Output interface: I2C | SPI
• Resolution (bit): 16 | 24
• Accuracy (at T_ref): ±0.1 °C
• Accuracy T_Range (°C): -5 – 50
• Supply voltage (V): 2.2 – 3.6
• Supply current (Max) (µA): 12.5
• Product width: 4 mm [ .157 in ]
• Product length: 4 mm [ .157 in ]
• Product height: 0.85 mm [ .033 in ]
• Operating temperature range: -40 – 125 °C [ -40 – 257 °F ]
