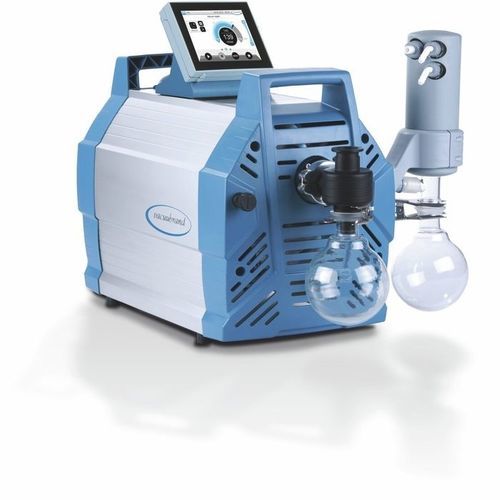

Laboratory vacuum pump PC 3016 NT VARIO select

diaphragmhigh flow capacity

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications to streamline laboratory workflows
• Automatic boiling point detection and automatic vacuum adjustment to shorten process times
• High pumping speed for evaporation of large volumes of low‑boiling solvents
• Long diaphragm life to lower operating and maintenance costs
• Efficient solvent recovery via exhaust vapor condenser for economical recycling and environmental protection

Description
These diaphragm pumping units deliver high pumping speed and stable vacuum control for solvent evaporation tasks. The PC 3016 NT VARIO select is designed for processing large amounts of low‑boiling solvents. The integrated VACUU·SELECT controller provides an application‑based graphical interface: manual set‑point control for simple operations, fully automated distillations, or user‑configured workflows via drag‑and‑drop editing. During evaporation the controller continuously detects the boiling point and adjusts the vacuum automatically.
The VARIO control varies pump speed according to demand, reducing noise and extending maintenance intervals. The inlet separator (glass with protective coating) prevents particles and liquid droplets from entering the pump. The exhaust vapor condenser enables near‑100% solvent recovery when cooling is connected.

Included / Key components

• Pump completely mounted, ready for use, with manual
• Inlet separator (glass with protective coating)
• Exhaust vapor condenser for solvent recovery
• VACUU·SELECT vacuum controller (graphical user interface, predefined applications)

Technical specifications

• Max. pumping speed 50 Hz: 19.3 m3/h
• Max. pumping speed 60 Hz: 11.4 cfm
• Ultimate vacuum: 70 mbar / 53 torr
• Ultimate vacuum with gas ballast: 100 mbar / 75 torr
• Number of heads: 8
• Number of stages: 1
• Vacuum controller: VACUU·SELECT
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: Small flange KF DN 25 / hose nozzle DN 15 mm
• Outlet connection: Hose nozzle DN 8-10 mm
• Coolant connection: 2 x hose nozzle DN 6-8 mm
• Rated motor power: 0.53 kW
• Protection class IEC 60529: IP 40
• Dimensions (L x W x H): 616 x 387 x 450 mm
• Weight: 29.7 kg
• Noise (sound pressure level) at 50 Hz: 47 dBA
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal atmosphere only)
• NRTL certification: No
• Rated mains voltage range (1): 200-230 V
• Mains frequency (1): 50-60 Hz
