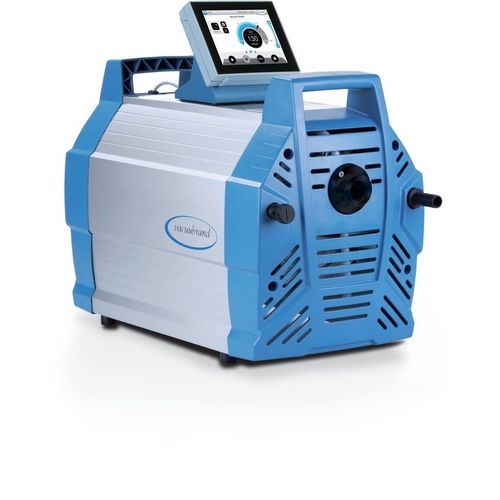

Rotary evaporator vacuum pump ME 16C NT VARIO select

laboratorydiaphragmoil-free

Overview

• VACUU·SELECT vacuum controller with graphical UI and predefined applications to simplify lab workflows
• Automatic boiling point detection and continuous vacuum adjustment for shorter process times
• Designed for evaporation of large volumes of low‑boiling solvents
• PTFE sandwich diaphragm and fluoroplastic pump heads for extended maintenance intervals

Product description
The ME 16C NT VARIO select is a single‑stage, oil‑free chemistry diaphragm pump for continuous pumping of corrosive gases and vapors. It combines a high pumping speed with an ultimate vacuum of 70 mbar, making it well suited to solvent evaporation tasks. Pump heads are made from chemically resistant fluoroplastics and the diaphragm is a proven PTFE sandwich design, resulting in long service intervals. The integrated VACUU·SELECT controller provides an application‑based graphical interface with predefined processes, manual set‑point control and the option to create custom sequences. During solvent evaporation the controller continuously detects the boiling point and automatically adjusts the vacuum. VARIO speed control runs the pump only as fast as required, reducing noise and extending maintenance intervals.

Key product details

• Ultimate vacuum: 70 mbar
• Ultimate vacuum with gas ballast: 100 mbar
• Max. pumping speed (50 Hz): 19.3 m³/h

Technical data and graphs
Max. pumping speed 50 Hz : 19.3 m3/h
Max. pumping speed 60 Hz : 11.4 cfm
Ultimate vacuum : 70 mbar / 53 torr
Ultimate vacuum with gas ballast : 100 mbar / 75 torr
Number of heads : 8
Number of stages : 1
Vacuum controller : VACUU·SELECT
Lower ambient temperature (operation) : 10 °C
Upper ambient temperature (operation) : 40 °C
Lower ambient temperature (storage) : -10 °C
Upper ambient temperature (storage) : 60 °C
Max. back pressure (abs.) : 1.1 bar
Inlet connection : KF DN 25 (small flange)
Outlet connection : Hose nozzle DN 15 mm
Rated motor power : 0.53 kW
Protection class IEC 60529 : IP 40
Dimension L x B x H (mm) : 533 x 260 x 450
Weight : 28.9 kg
Noise (sound pressure level) at 50 Hz : 47 dBA
ATEX conformity : II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
NRTL certification : No
Items supplied : Pump completely mounted, ready for use, with manual
Rated mains voltage range : 200-230 V
Mains frequency : 50-60 Hz
Interface : Ethernet (RJ45) Modbus TCP / USB (Type A) / RS-232 (adapter required)

Characteristics / specifications

• Model: ME 16C NT VARIO select
• Pumping principle: single‑stage chemistry diaphragm pump, oil‑free
• Material pump heads: chemical resistant fluoroplastics
• Diaphragm: PTFE sandwich diaphragm
• Controller: integrated VACUU·SELECT with graphical UI, predefined apps, boiling point detection, VARIO control
• Pumping speed (50 Hz): 19.3 m³/h
• Ultimate vacuum: 70 mbar (53 torr)
• Ultimate vacuum with gas ballast: 100 mbar (75 torr)
• Inlet: KF DN 25 (small flange)
• Outlet: Hose nozzle DN 15 mm
• Rated motor power: 0.53 kW
• Dimensions (L×B×H): 533 × 260 × 450 mm
• Weight: 28.9 kg
• Noise level: 47 dBA (50 Hz)
• Protection class: IP40
• Max. back pressure (abs.): 1.1 bar
• Power supply: 200–230 V, 50–60 Hz
• Interfaces: Ethernet (RJ45) Modbus TCP, USB Type A, RS-232 (adapter)
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
