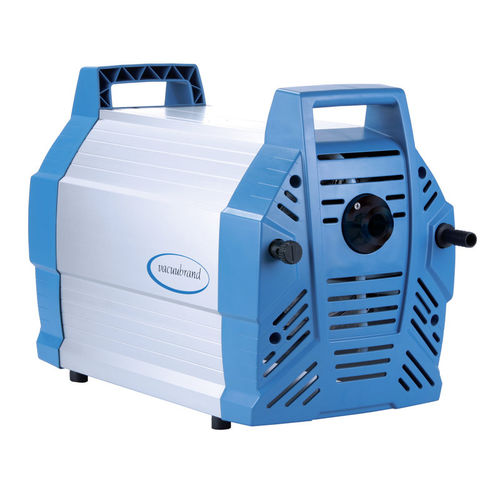

Laboratory vacuum pump ME 16C NT

diaphragmoil-free

Overview

• Outstanding chemical resistance and superior vapor tolerance
• Very high pumping speed even at low vacuum levels
• Compact construction with smooth, easy-to-clean surfaces
• Quiet operation and very low vibration
• Long diaphragm life; maintenance-free drive

Product description
Chemistry diaphragm pumps of the NT design provide oil-free, continuous pumping of corrosive gases and vapors. The single-stage construction combines high pumping speed with a low ultimate vacuum (down to 70 mbar). All wetted parts are made from chemically resistant fluoroplastics. Proven PTFE sandwich diaphragms increase reliability and extend service life. The eight-head ME 16C NT delivers particularly high performance in a compact footprint. Accessories such as an inlet separator (AK) for pump protection and an exhaust vapour condenser (EK) for solvent recovery can be mounted later if required.

Key product details
Ultimate vacuum: 70 mbar
Ultimate vacuum with gas ballast: 100 mbar
Max. pumping speed (50 Hz): 16.3 m3/h
Max. pumping speed (60 Hz): 9.6 cfm
Number of heads: 8
Number of stages: 1
Rated motor power: 0.53 kW
Rated motor speed (50/60 Hz): 1650 min-1
Protection class (IEC 60529): IP 40
Inlet connection: small flange KF DN 25
Outlet connection: Hose nozzle DN 15 mm

Technical specifications

• Model: ME 16C NT
• Type: Chemistry diaphragm pump, oil-free, PTFE diaphragms
• Pumping speed (50 Hz): 16.3 m3/h
• Pumping speed (60 Hz): 9.6 cfm
• Ultimate vacuum: 70 mbar (53 torr)
• Ultimate vacuum with gas ballast: 100 mbar (75 torr)
• Number of heads: 8
• Number of stages: 1
• Ambient temperature (operation): 10 °C to 40 °C
• Ambient temperature (storage): -10 °C to 60 °C
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: KF DN 25
• Outlet connection: Hose nozzle DN 15 mm
• Rated motor power: 0.53 kW
• Rated speed: 1650 min⁻¹ (50/60 Hz)
• Protection class: IP 40
• Dimensions (L × W × H): 533 × 260 × 359 mm
• Weight: 27.3 kg
• Noise level (sound pressure) at 50 Hz: 54 dBA
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
• NRTL certification: No
• Supply scope: Pump assembled, ready to use, with manual
• Rated mains voltage range: 200–230 V
• Mains frequency: 50–60 Hz
