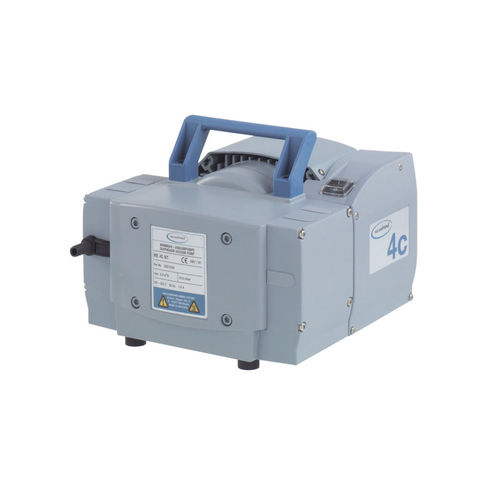

Laboratory vacuum pump ME 4C NT

diaphragmoil-free

Overview

• Outstanding chemical resistance
• High pumping performance near ultimate vacuum
• Whisper-quiet operation
• Low vibration (ME 4C NT)
• Long diaphragm life; maintenance-free drive

Product description
Chemistry-design diaphragm pumps provide continuous oil-free evacuation of corrosive gases and vapors. The single-stage construction combines a compact footprint with a high pumping speed and an ultimate vacuum down to 70 mbar. All wetted major parts are made from chemically resistant fluoroplastics; PTFE sandwich diaphragms improve reliability and service life. The NT series offers improved performance, higher condensate tolerance and simplified maintenance. The ME 4C NT can be supplied as a chemistry vacuum system ME 4C NT +2AK with an inlet separator to protect the pump from particles and liquid droplets and an outlet separator to collect condensate.

Key product details

• Ultimate vacuum: 70 mbar (52 torr)
• Max. pumping speed 50 Hz: 3.9 m3/h
• Max. pumping speed 60 Hz: 2.6 cfm
• Number of heads: 2
• Number of stages: 1
• Rated motor power: 0.18 kW
• Rated motor speed (50/60 Hz): 1500 / 1800 min-1
• Rated mains voltage range: 230 V
• Mains frequency: 50-60 Hz
• Inlet / outlet connection: Hose nozzle DN 8-10 mm
• Max. back pressure (abs.): 1.1 bar
• Protection class (IEC 60529): IP 40
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature range: -10 °C to 60 °C
• Weight: 11.1 kg
• Noise (sound pressure level) at 50 Hz: 45 dBA
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
• NRTL certification: Yes
• Items supplied: Pump completely mounted, ready for use, with manual

Technical data and graphs (table)
Max. pumping speed 50 Hz: 3.9 m3/h
Max. pumping speed 60 Hz: 2.6 cfm
Ultimate vacuum: 70 mbar / 52 torr
Number of heads: 2
Number of stages: 1
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Rated motor power: 0.18 kW
Rated motor speed at 50/60 Hz: 1500/1800 min-1
Protection class IEC 60529: IP 40
Dimension L x B x H: 254 x 243 x 198 mm
Weight: 11.1 kg
Noise (sound pressure level) in dBA at 50 Hz: 45 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
NRTL certification: Yes
Items supplied: Pump completely mounted, ready for use, with manual

Characteristics / technical specifications

• Model: ME 4C NT
• Design: Chemical diaphragm pump, single-stage; wetted parts in chemically resistant fluoroplastics
• Diaphragms: PTFE sandwich
• Ultimate vacuum: 70 mbar (52 torr)
• Pumping speed (50 Hz): 3.9 m3/h
• Pumping speed (60 Hz): 2.6 cfm
• Number of heads/stages: 2 / 1
• Rated motor power: 0.18 kW
• Rated voltage / frequency: 230 V, 50-60 Hz
• Connections: Hose nozzle DN 8-10 mm (inlet/outlet)
• Max. back pressure: 1.1 bar (abs.)
• Protection class: IP 40
• Operating temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Weight: 11.1 kg
• Noise level: 45 dBA (50 Hz)
• Certifications: ATEX (as specified), NRTL
• Supply: Pump mounted and ready for use with manual
