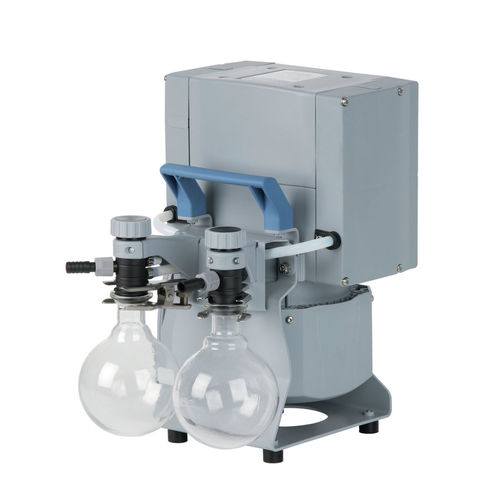

Laboratory vacuum pump ME 8C NT +2AK

diaphragmoil-free

Overview

• outstanding chemical resistance and superior vapor tolerance
• exceptionally high pumping speed even at low vacuum
• compact footprint for laboratory and benchtop use
• whisper-quiet operation with very low vibration (45 dBA at 50 Hz)
• long-life PTFE sandwich diaphragms and maintenance-free drive

Product description
The chemistry vacuum system ME 8C NT +2AK is an oil-free, single-stage diaphragm pump system designed for continuous pumping of corrosive gases and condensable vapors. The single-stage design combines a high pumping speed with a low ultimate vacuum down to 70 mbar. All wetted components are made of chemically resistant fluoroplastics (PTFE) to ensure compatibility with aggressive media. The integrated inlet separator protects the pump from particles and liquid droplets, while the outlet separator collects condensate. The NT series provides improved performance data and enhanced vapor tolerance. The unit is delivered completely mounted and ready for use with manual.

Items / key data

• Articleno.: 20734405
• Ultimate vacuum: 70 mbar
• Max. pumping speed (50 Hz): 7.1 m3/h
• Max. pumping speed (60 Hz): 4.6 cfm
• Number of heads: 4
• Number of stages: 1
• Rated motor power: 0.25 kW
• Rated motor speed (50/60 Hz): 1500 / 1800 min-1
• Protection class IEC 60529: IP 40
• Inlet / Outlet connection: Hose nozzle DN 8-10 mm
• Max. back pressure (abs.): 1.1 bar
• Noise (sound pressure level) at 50 Hz: 45 dBA
• Weight: 16.7 kg
• Dimensions (L x W x H): 319 mm x 243 mm x 374 mm
• Rated mains voltage ranges: 200-230 V / 100-115 V / 120 V
• Mains frequency options: 50-60 Hz / 60 Hz
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• NRTL certification: Yes
• Items supplied: Pump completely mounted, ready for use, with manual

Technical data (summary)
Max. pumping speed 50 Hz: 7.1 m3/h
Max. pumping speed 60 Hz: 4.6 cfm
Ultimate vacuum: 70 mbar / 52 torr
Number of heads: 4
Number of stages: 1
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Rated motor power: 0.25 kW
Rated motor speed at 50/60 Hz: 1500/1800 min-1
Protection class IEC 60529: IP 40
Dimensions (L x W x H): 319 mm x 243 mm x 374 mm
Weight: 16.7 kg
Noise (sound pressure level) in dBA at 50 Hz: 45 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certification: Yes
Items supplied: Pump completely mounted, ready for use, with manual

Characteristics / specifications

• Series / Model: ME 8C NT +2AK
• Oil-free diaphragm pump, chemistry design (PTFE wetted parts)
• Single-stage construction for high pumping speed and low ultimate vacuum
• Inlet separator included to protect the pump from particles and liquid droplets
• Outlet separator for condensate collection
• PTFE sandwich diaphragms for extended lifetime
• Good vapor tolerance and chemical resistance
• Low vibration and low noise emission (45 dBA at 50 Hz)
• Multiple mains voltage variants and frequency support
• Protection class IP40; suitable for demanding laboratory and industrial chemical applications
