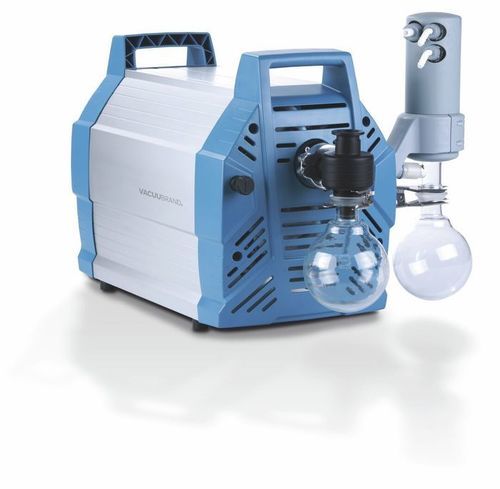

Rotary evaporator vacuum pump MD 12C NT
laboratorymulti-stage

Rotary evaporator vacuum pump - MD 12C NT - Vacuubrand - laboratory / multi-stage
Rotary evaporator vacuum pump - MD 12C NT - Vacuubrand - laboratory / multi-stage
Rotary evaporator vacuum pump - MD 12C NT - Vacuubrand - laboratory / multi-stage - image - 2
Add to favorites
Compare this product
Go to the Vacuubrand website for more information

Characteristics

Applications
laboratory, for rotary evaporators
Options
multi-stage
Flow

7 m³/h, 12 m³/h
(0.2 ft³/h, 423.78 ft³/h)

Power

0.53 kW
(0.72 hp)

Pressure

Max.: 0.004 bar
(0.058 psi)

Min.: 0.002 bar
(0.029 psi)

Inlet fitting size

15 mm
(0.6 in)

Outlet fitting size

Max.: 10 mm
(0.4 in)

Min.: 8 mm
(0.3 in)

Weight

28.9 kg
(63.7 lb)

Length

61.6 cm
(24.3 in)

Width

38.7 cm
(15.2 in)

Height

39.5 cm
(15.6 in)

Description

Overview
  • Excellent chemical resistance and tolerance to condensates
  • Reduced process time due to high throughput, even near the ultimate vacuum
  • Vibration-free, very quiet operation
  • Very good ultimate vacuum, including with air ballast
  • Efficient solvent recovery for the MD 12C NT +AK +EK thanks to an inlet separator (AK) and a discharge condensation column (EK)


Description
  • These "chemical" vacuum systems are suitable for a wide range of applications in suction, evaporation, and pumping of gases and vapors.
  • The base pump MD 12C NT is powerful and compactly built; it achieves an excellent vacuum, including with air ballast.
  • Emphasis is placed on chemical compatibility for use in chemical and pharmaceutical environments.
  • The inlet separator (AK) improves protection of the pump against particles and liquids.
  • The discharge condensation column (EK) is highly efficient and compact, allowing near-100% solvent recovery for recycling and environmental protection.


Technical data and illustrations (excerpts)
Max. throughput 50 Hz: 12 m3/h
Max. throughput 60 Hz: 7.0 cfm
Ultimate vacuum: 2 mbar / 1.5 torr
Ultimate vacuum with air ballast: 4 mbar / 3 torr
Pumping curve (e.g. 100 l vessel) provided as illustration

Technical features / specifications
  • Base pump model: MD 12C NT
  • Accessories included in the presented version: AK (inlet separator), EK (discharge condensation column)
  • Max. throughput (50 Hz): 12 m3/h
  • Max. throughput (60 Hz): 7.0 cfm
  • Ultimate vacuum: 2 mbar / 1.5 torr
  • Ultimate vacuum with air ballast: 4 mbar / 3 torr
  • Number of cylinders: 8
  • Number of stages: 3
  • Operating ambient temperature (range): 10 °C to 40 °C
  • Storage ambient temperature (range): -10 °C to 60 °C
  • Max. exhaust pressure (absolute): 1.1 bar
  • Inlet connection: small KF flange DN 25 / nozzle DN 15 mm
  • Discharge connection: nozzle DN 8-10 mm
  • Cooling water connection: 2 x nozzle DN 6-8 mm
  • Rated power: 0.53 kW
  • Rated speed: 1650 min-1 (50/60 Hz)
  • Protection class (IEC 60529): IP 40
  • Dimensions (L x W x H): 616 mm x 387 mm x 395 mm
  • Weight: 28.9 kg
  • Sound level (at 50 Hz): 50 dBA
  • ATEX certification: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)
  • Delivery contents: pump unit delivered complete, ready to operate, with operating manual
  • Rated voltage (range 1): 200-230 V
  • Rated frequency (range 1): 50-60 Hz
