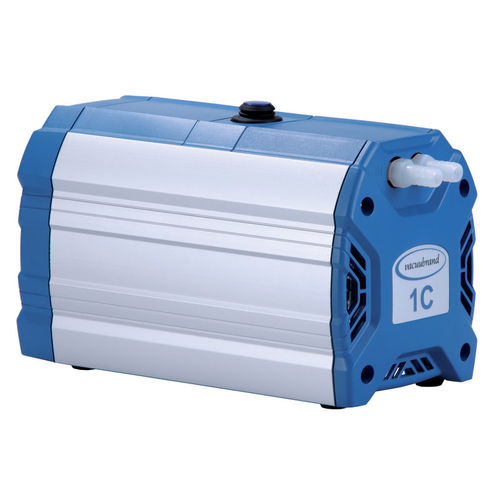

Laboratory pump ME 1C

suctionelectricdiaphragm

Overview

• Top-mounted power switch for convenient, quick operation
• Whisper-quiet operation with very low vibration (≈49 dBA at 50 Hz)
• Compact footprint for minimal benchtop space
• Maintenance-free drive system and long diaphragm lifetime
• Chemically resistant PTFE diaphragms and valves

Description
The ME 1C is a compact, oil-free chemistry diaphragm pump designed for vacuum filtration and single-sample laboratory workflows. It provides a space-saving, easy-to-operate solution for sample preparation in chemistry, microbiology, wastewater monitoring and other analytical processes. Key design elements include the top-mounted power switch, PTFE diaphragms and valves for chemical resistance, and a maintenance-free drive system that extends diaphragm service life. An optional manual vacuum regulator valve with dial gauge enables stepless adjustment of pumping speed and ultimate vacuum.

Applications

• Vacuum filtration (single-station setups)
• Solid phase extraction and general sample preparation in chemistry and microbiology
• Wastewater control and other analytical laboratory processes

Technical data and graphs (key values)
Max. pumping speed 50 Hz: 0.7 m3/h
Max. pumping speed 60 Hz: 0.5 cfm
Ultimate vacuum: 100 mbar / 75 torr
Number of heads: 1
Number of stages: 1
Rated motor power: 0.04 kW
Rated motor speed (50/60 Hz): 1500 / 1800 min-1
Inlet / outlet connection: Hose nozzle DN 8-10 mm
Protection class (IEC 60529): IP 40
Noise (sound pressure level) at 50 Hz: 49 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certification: Yes

Characteristics / specifications

• Model: ME 1C
• Type: Chemistry diaphragm pump, single stage, oil-free
• Ultimate vacuum: 100 mbar (75 torr)
• Pumping speed (50 Hz): 0.7 m3/h
• Pumping speed (60 Hz): 0.5 cfm
• Number of heads: 1
• Number of stages: 1
• Rated motor power: 0.04 kW
• Rated motor speed: 1500 / 1800 min-1 (50/60 Hz)
• Inlet / outlet: Hose nozzle DN 8-10 mm
• Max. back pressure (abs.): 1.1 bar
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Protection class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 270 mm x 121 mm x 154 mm
• Weight: 5.4 kg
• Noise level: 49 dBA (at 50 Hz)
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Certification: NRTL
• Items supplied: Pump completely mounted, ready for use, with manual
• Rated mains voltage ranges: 220-230 V; 100-115 V; 120 V
• Mains frequency: 50-60 Hz (and 60 Hz variants)
