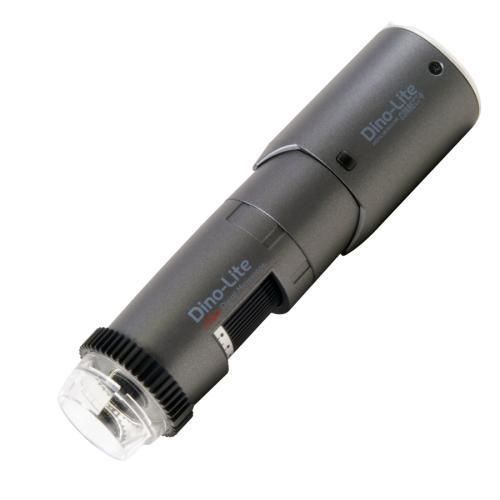

Videomicroscópio digital WF4515ZT

para inspeçãode laboratóriopolarizado

Visão geral
O Dino-Lite WF4515ZT é um microscópio digital híbrido sem fio/USB da série Universal. Opera com fio via USB ou sem fio com o adaptador destacável WF-20, proporcionando flexibilidade para inspeção e tarefas de medição em produção, laboratório e campo.

Principais características

• Operação sem fio ou com fio (adaptador WF-20 incluído)
• Faixa de ampliação 20–220×
• Sensor CMOS 1,3 MP (1280×1024), até 30 fps
• Automatic Magnification Reading (AMR) para precisão na leitura de ampliação
• Polarizador linear ajustável para redução de brilho
• Flexible LED Control (FLC) e 8 LEDs brancos com difusor
• Funcionalidades de medição e calibração; sensor microtouch

Working distance / Field of view / Depth of field (Unidade = mm)
Nota: Os valores listados podem variar ligeiramente. * Sem tampa frontal.
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 60.2 | 19.5 | 14.6 | 2.5
30 | 33.5 | 13.0 | 9.7 | 1.8
40 | 20.9 | 9.8 | 7.3 | 1.5
50 | 13.9 | 7.8 | 5.8 | -
60 | 9.7 | 6.5 | 4.8 | -
70 | 7.1 | 5.6 | 4.2 | 1.0
80 | 5.5 | 4.9 | 3.6 | -
90 | 4.5 | 4.3 | 3.2 | -
100 | 4.1 | 3.9 | 2.9 | -
110 | 4.0 | 3.6 | 2.7 | -
120 | 4.1 | 3.3 | 2.4 | -
130 | 4.5 | 3.0 | 2.2 | -
140 | 5.0 | 2.8 | 2.1 | -
150 | 5.6 | 2.6 | 1.9 | -
160 | 6.3 | 2.4 | 1.8 | -
170 | 7.1 | 2.3 | 1.7 | -
180 | 8.0 | 2.2 | 1.6 | -
190 | 8.9 | 2.1 | 1.5 | -
200 | 9.9 | 2.0 | 1.5 | -
210 | 10.9 | 1.9 | 1.4 | -
220 | 11.9 | 1.8 | 1.3 | 0.1

Especificação (detalhada)
Iluminação
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear

Óptica
Magnification: 20x ~ 220x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps

Compatibilidade
Interface: USB 2.0
Operating system (cable only): Windows 7, 8, 10 & 11; MacOS 10.11.6 and up (cable only)
Software: DinoCapture 2.0 (Windows) cable + wireless, DinoXcope (Mac OS) cable only, DinoConnect wireless only
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
WiFi: Yes

Carcaça
Housing material: Composite / plastic housing
Dimensions: 11.4 cm (L) x 3.3 cm (D)
Weight: 111 g
Cable length: 1.8 m

Recursos
Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No

Conteúdo da embalagem
Microscope, WF-20 wireless adapter, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap)

Informações adicionais
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range: €900,00 - €1100,00

Especificações técnicas

• Model: WF4515ZT
• Brand: Dino-Lite
• Magnification: 20x–220x
• Sensor: CMOS 1.3 MP (1280x1024), 30 fps
• Interface: USB 2.0; wireless via WF-20
• LEDs: 8 white LEDs, on/off switchable, diffuser included
• Polarizer: Adjustable linear polarizer
• Special features: AMR (Automatic Magnification Reading), FLC (Flexible LED Control), measurement and calibration support, microtouch sensor
• Lens: Glass with anti-reflection coating
• Housing: Composite/plastic; dimensions 11.4 cm x 3.3 cm; weight 111 g
• Cable length (when used wired): 1.8 m
