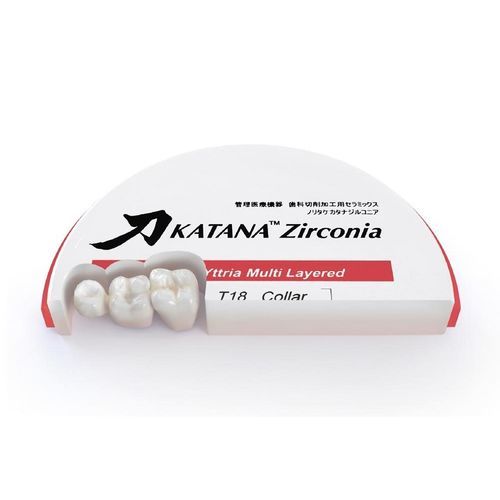

Zirconium dioxide dental material KATANA* Zirconia YML

ZrO2zirconiafor implant abutments

Overview
KATANA* Zirconia YML is a 4-layer, type-layer zirconia blank designed for dental restorations, offering a pigmented incisal layer for optimized translucency and consistent flexural strength across dentin and transfer areas. Suitable for monolithic and veneered solutions as well as implant abutments.

Key features

• Latest generation type-layer zirconia with patented raw material technology
• Consistently high flexural strength in dentin and transfer zones
• Optimized translucency with pigmented incisal layer for natural aesthetics
• 4-layer Multicolor structure with smooth layer transitions
• Available in 13 VITA classical shades (A–D)
• Multicolor format suitable for monolithic restorations and microveneering
• Supports bridge frameworks up to 14 units and up to two adjacent pontics
• Applicable for implant abutments, monolithic abutment crowns and bridges

Indications

• Fully anatomical crowns and bridges (up to 14 units, up to two pontics)
• Crowns and bridge frameworks for partially or fully veneered restorations (up to 14 units, up to two pontics)
• Two-piece abutments (CadAbut Duo)
• Dentin core crowns and bridges as per Josef Schwaiger method (Patents: EP2363094B1 / DE102010002484B4)

Chemical composition
Zirconium dioxide (ZrO2) & Hafnium oxide (HfO2) — 87–95%
Yttrium oxide (Y2O3) — 5–10%
Other oxides and pigments — 0–2%

Technical properties
3-point bending strength — 750–1,100 MPa
Coefficient of thermal expansion — 10.1 × 10^-6 K^-1
Translucency — 45–49%
Hardness — 1,255 HV10
Elastic modulus — 214–217 GPa

Product specifications

• Product family / name: KATANA* Zirconia YML
• Material type: Type-layer zirconia, 4-layer multicolor
• Color shades: 13 VITA classical shades (A–D)
• Indications: Monolithic restorations, microveneering, implant abutments, crowns and bridges (up to 14 units, up to two pontics)
• Chemical composition: ZrO2 & HfO2 (87–95%), Y2O3 (5–10%), other oxides/pigments (0–2%)
• Flexural strength (3-point bending): 750–1,100 MPa
• Translucency: 45–49%
• Hardness: 1,255 HV10
• Elastic modulus: 214–217 GPa
• Coefficient of thermal expansion: 10.1 × 10^-6 K^-1
