Alloy dental material Mediloy® M-Co

cobalt-chromiumCoCrfor dental crowns

Product overview

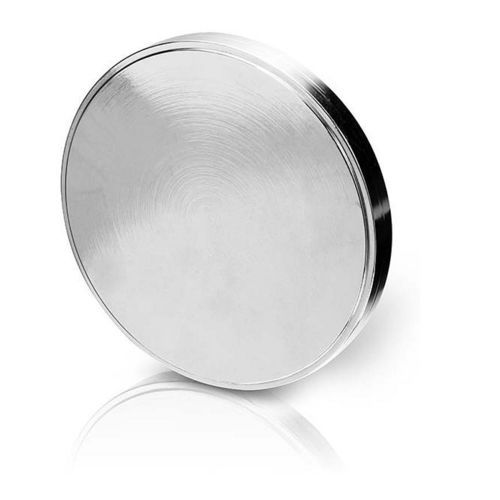

Mediloy® M-Co CAD/CAM milling blanks are Co-Cr alloy blocks manufactured in Germany for dental restorations. Designed for efficient CAD/CAM milling, they are compatible with BEGO partial denture alloys, Wirobond® C+ SLM frameworks and units milled from Mediloy® M-Co (crowns, secondary crowns).

Economic advantages
Excellent milling properties reduce tool wear and lower tool-related costs over time. Compare your previous cost per milled unit (including tool wear) with Mediloy® M-Co to evaluate savings in production.

Your advantages

• Type 4 alloy (ISO 22674)
• Approved for crowns and bridges, metal-ceramics and implant prosthetics
• Biocompatible and corrosion-resistant like all BEGO alloys*
• Special heat treatment provides:
  • reduced tool wear during milling
  • a homogeneous microstructure without cavities or porosities
  • particularly easy machinability
• Reduced hardness of 290 HV10 for easier processing
• Available sizes:
  • without shoulder: 8, 10, 12, 14, 16, 18, 20, 22 and 25 mm
  • with shoulder: 12, 14, 16, 18, 20, 22 and 25 mm

Composition (by mass)
Co 63.8 · Cr 24.8 · W 5.3 · Mo 5.1 · Si 1.0

Alloy characteristics
Type (ISO 22674): 4
Density: 8.6 g/cm³
Modulus of elasticity: 235 GPa
0.2% proof stress (Rp0.2): 415 MPa
Tensile strength (Rm): 965 MPa
Hardness (HV 10): 290
Coefficient of thermal expansion (RT–500°C): 14.4 · 10^-6 K^-1
Coefficient of thermal expansion (RT–600°C): 14.6 · 10^-6 K^-1

Availability (selection)
Mediloy® M-Co 8 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: – | without shoulder REF: 50939
Mediloy® M-Co 10 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: – | without shoulder REF: 50940
Mediloy® M-Co 12 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: 50941 | without shoulder REF: 50951
Mediloy® M-Co 14 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: 50952 | without shoulder REF: 50942
Mediloy® M-Co 16 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: 50953 | without shoulder REF: 50943
Mediloy® M-Co 18 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: 50954 | without shoulder REF: 50944
Mediloy® M-Co 20 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: 50955 | without shoulder REF: 50945
Mediloy® M-Co 22 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: 50956 | without shoulder REF: 50946
Mediloy® M-Co 25 mm | Diameter: 98.0 mm | Content: 1 piece | with shoulder REF: 50957 | without shoulder REF: 50947

Technical specifications

• Composition (mass %): Co 63.8, Cr 24.8, W 5.3, Mo 5.1, Si 1.0
• Type (ISO 22674): 4
• Density: 8.6 g/cm³
• Modulus of elasticity: 235 GPa
• 0.2% proof stress (Rp0.2): 415 MPa
• Tensile strength (Rm): 965 MPa
• Hardness (HV10): 290
• Coefficient of thermal expansion (RT–500°C): 14.4 · 10^-6 K^-1
• Coefficient of thermal expansion (RT–600°C): 14.6 · 10^-6 K^-1
• Available diameter: 98.0 mm; heights 8–25 mm with/without shoulder depending on REF
