Alloy dental material Wirobond® C+

cobalt-chromiumfor dental restorationsfor implant abutments

Product overview
Wirobond® C+ is a cobalt-chrome dental alloy manufactured for Selective Laser Melting (SLM) applications. The material is formulated and processed to provide a homogeneous, highly dense microstructure suitable for ceramic veneering.

• Material: cobalt-chrome alloy optimized for dental restorations
• SLM production ensures dense, homogeneous structures compatible with veneering ceramics (with appropriate CTE)
• Controlled manufacturing for stress-free frames and high accuracy of fit
• Nickel- and beryllium-free to reduce cytotoxic and allergic risks

Indications

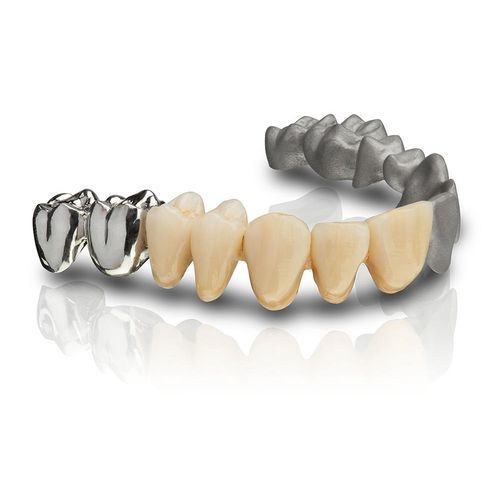

• Frameworks for partial and full veneered restorations up to 16 units with up to four pontics
• Fully anatomical crowns and bridges up to 16 units with up to four pontics
• Two-piece abutments
• Tertiary frames for crowns and bridges
• Retention per segment

Multimedia and downloads
Illustration video on the SLM manufacturing process and technical documentation (user instructions, processing guidelines) are available for Wirobond® C+.

Technical specifications
Chemical composition (wt.%): Co 63.9 % · Cr 24.7 % · W 5.4 % · Mo 5.0 % · Si 1.0 %

Alloy characteristics:

• ISO type (ISO 22674): 5
• Density: 8.6 g/cm³
• 0.2% proof stress (Rp0.2): 1,090 MPa
• Tensile strength (Rm): 1,315 MPa
• Modulus of elasticity: 215 GPa
• Solidus / liquidus: 1,380 / 1,420 °C
• Coefficient of thermal expansion (RT–500 °C): 14.3·10^-6 K^-1
• Coefficient of thermal expansion (RT–600 °C): 14.5·10^-6 K^-1

Additional information
Recommended manufacturing route: SLM followed by standard post-processing for dental frameworks and ceramic veneering according to provided processing guidelines.
