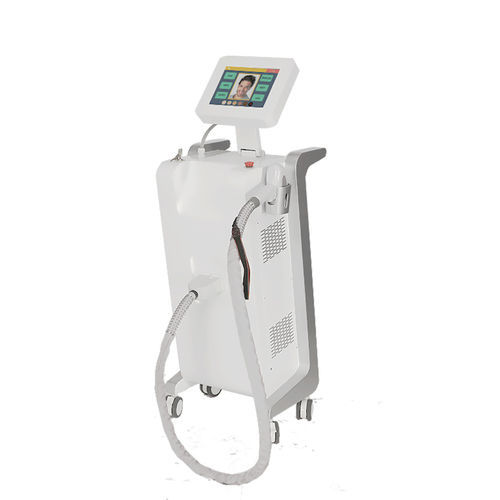

Hair removal laser DM-008

diodetrolley-mounted

Product Summary
Laser Type: Diode Laser
Wavelengths: 808 nm + 755 nm + 1064 nm (selectable/combined)
Laser Bars: 6 / 8 / 10 options
Cooling System: Water + Air Fans + Semiconductor
Handpiece Spot: adjustable 8–16 mm diameter
Pulse Width: 5–100 ms adjustable
OEM & ODM: supported (professional design and production)

Product Description
Treatment theory:
The device uses selective photothermolysis to target melanin in the hair shaft and hair follicle, raising follicle temperature to thermally disable cells responsible for regrowth while preserving surrounding tissue. Wavelength, pulse duration and energy settings are selected to maximise follicle effect and minimise epidermal damage. Suitable for a range of hair types and skin tones when parameters are adapted by trained operators.

Advantages

• Adjustable spot size (8–16 mm) and selectable pulse widths enable treatment of small and large areas with controlled fluence.
• Integrated water + air + semiconductor cooling lowers skin temperature for increased patient comfort and session efficiency.
• Multiple laser bar configurations (6/8/10) allow higher power density for faster coverage on larger areas.

Handpiece details

• Key point 1: ~100 million pulse lifespan — claimed 3–5× longer than channel diode sources.
• Key point 2: 3 wavelengths in one handpiece (755 + 808 + 1064 nm) to target different hair types and depths.
• Key point 3: USA chip claimed for deeper penetration and stable energy delivery.
• Key point 4: Multiple energy levels and spot-size options to match clinical protocols and anatomical zones.

Technical specifications

• Model: DM-008
• Brand: VCA LASER
• Laser Type: Diode Laser
• Wavelengths: 808 nm, 755 nm, 1064 nm
• Laser Bars Options: 6 / 8 / 10
• Cooling System: Water cooling + Air fans + Semiconductor cooling
• Spot Size (handpiece): adjustable 8–16 mm diameter
• Pulse Width: adjustable 5–100 ms
• Handpiece Options: multiple spot sizes and energy settings
• Lifetime of source: ~100 million pulses (claimed)
• Chip: USA chip (claimed)
• OEM/ODM: supported
