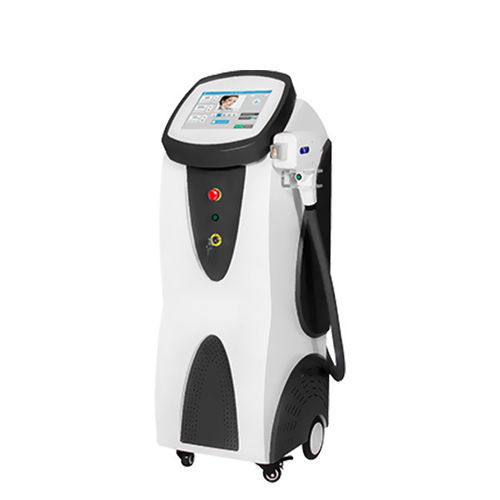

Hair removal laser VD6

sapphirediode

Product overview
VD6 diode laser system for professional hair removal and skin treatment, supporting 755 / 808 / 1064 nm triple-wavelength configuration. Designed for clinic and salon use with semiconductor laser modules and multi-stage cooling.

Brief
Laser output power: 1600 W (alternate spec up to 2000 W)
Energy density: 1–72 J/cm2 (spec table: 10–200 J/cm2 adjustable)
Repetition rate: 1–15 Hz (adjustable)
Cooling system: Semiconductor + water + air + sapphire contact cooling; air compressor cooling referenced
Transport package: Aluminum packing

Features

• Triple-wavelength diode laser (755 / 808 / 1064 nm) to address different hair and skin types for clinical treatments.
• High-energy output with adjustable fluence to reduce pigmentation risk while achieving visible results from early sessions.
• Extended pulse width and large spot (15 x 27 mm) for effective heat accumulation in follicles and faster coverage.
• Contact cooling using semiconductor + sapphire surfaces to protect epidermis and increase patient comfort.
• Minimal skin scattering and designed to avoid damage to sweat glands and surrounding tissue.
• Modular power module architecture for simplified maintenance and parts replacement.
• Thermostatic water circulation and self-check/auto-protection systems for operational stability and pump protection.

Service
Warranty: 3 years free warranty; lifetime maintenance available.
Support: 24-hour calling service; OEM & ODM options for distributors.
Training: User manual, maintenance manual and training materials provided after purchase.

Technical table
Laser type: Semiconductor (diode) laser
Wavelengths: 755 nm / 808 nm / 1064 nm (triple-wavelength configurable)
Energy density: 1–72 J/cm2 (product brief) / 10–200 J/cm2 (spec table), adjustable
Pulse width: 50–400 ms, adjustable
Repetition rate: 1–10 Hz (spec table) / 1–15 Hz (brief), adjustable
Display: 8.4" / 10.4" color touch screen
Spot size: 15 x 27 mm
Output power: 1600 W (brief) / up to 2000 W (alternate spec)
Cooling: Semiconductor cooling + water cooling + air cooling + sapphire contact cooling; air compressor cooling mentioned
Power supply: 110/220 V ±10%, 50/60 Hz
Protection: Self-checking and auto-protection mechanisms

Technical specifications

• Model: VD6
• Brand: VCA LASER
• Laser type: Semiconductor diode laser
• Wavelengths: 755 nm / 808 nm / 1064 nm (triple-wavelength)
• Laser output power (brief): 1600 W
• Alternate output power (spec table): up to 2000 W
• Energy density (brief): 1–72 J/cm2
• Energy density (spec table): 10–200 J/cm2, adjustable
• Pulse width: 50–400 ms, adjustable
• Repetition rate: 1–10 Hz (table) and 1–15 Hz (brief), adjustable
• Spot size: 15 x 27 mm
• Display: 8.4" / 10.4" color touch screen
• Cooling system: Semiconductor + water + air + sapphire contact cooling (air compressor cooling referenced)
• Transport package: Aluminum packing
• Power supply: 110/220 V ±10%, 50/60 Hz
• Protection: Self-checking and auto-protection mechanisms
