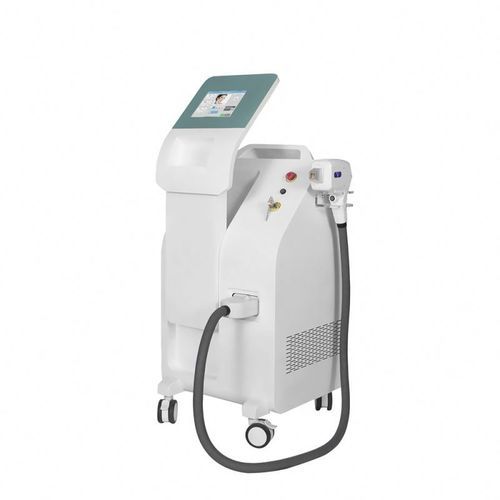

Hair removal laser VD18

alexandritediodetrolley-mounted

Product Brief

• Type: Hair removal instrument (diode laser)
• Laser technology: Semiconductor diode
• Application: Aesthetic clinics, medical spas, salons
• Portability: Stationary (non‑portable)
• Laser power options: 1200W / 1800W / 2000W
• Warranty: 3 years

Product Description
The VD18 is a multi‑wavelength diode laser system combining 808 nm diode emission with references to 755 nm (Alexandrite context) to address a wide range of hair types and skin phototypes. The device delivers controlled pulses of light that penetrate to the hair follicle where melanin absorption converts light into heat, impairing follicle regeneration to achieve long‑term hair reduction.

Treatment Therapy
Based on selective photothermolysis, the system allows precise adjustment of energy density, pulse width and spot size so that sufficient thermal damage is confined to hair follicles while minimizing epidermal impact. Adjustable parameters (J/cm2, ms, Hz) and contact cooling enable safe treatments across different body areas including sensitive zones.

Key Specifications

• Model: VD18
• Brand: VCA LASER
• Laser type: Semiconductor diode laser
• Wavelength(s): 808 nm (multi‑wavelength capability; 755 nm referenced)
• Energy output: 10–200 J/cm2 (adjustable)
• Pulse width: 50–400 ms (adjustable)
• Pulse frequency / interval: 1–10 Hz (adjustable)
• Display: 8.4" / 10.4" color touch screen
• Spot size: 15 x 27 mm2 (handpiece spot size adjustable; page also reports 8–16 mm diameter options)
• Output power: up to 2000W (device configuration dependent)
• Pulse mode: Pulse mode (selectable)
• Contact cooling: Semiconductor cooling + water cooling + air cooling + sapphire contact cooling
• Power supply: 110/220V ±10%, 50/60Hz
• Laser power SKUs: 1200W / 1800W / 2000W
• Warranty: 3 years

Advantages

• Ergonomic handpiece with selectable spot sizes for targeted treatment of different areas.
• Continuous contact cooling reduces skin temperature for improved patient comfort.
• Adjustable pulse width and energy allow customization for hair thickness and skin phototype.
• Sliding handpiece operation supports fast coverage and visible immediate response during procedures.
• Manufacturer support: OEM/ODM options and training materials (user manual, maintenance manual, training media) available.
