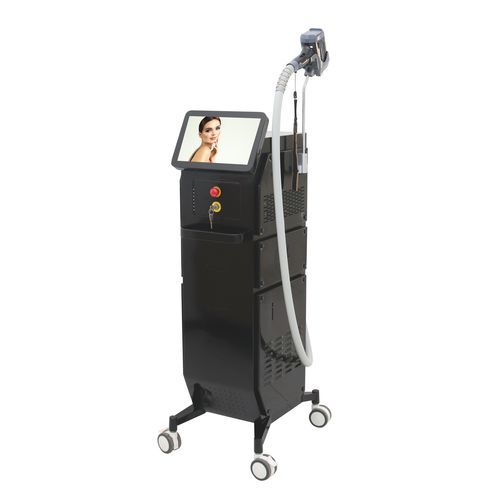

Hair removal laser VD69

sapphirediodetrolley-mounted

Product Brief

• Laser bar: 13 pcs Germany bars with sapphire in handpiece.
• Sapphire contact cooling system: comfortable and safe, minimizes epidermal heating.
• Spot sizes: 15x27 mm / 15x15 mm / 12x12 mm (optional 9x9 mm and facial tip).
• High repetition rate: 1–10 Hz, up to 10 shots per second.

Product Description
755 nm, 808 nm and 1064 nm diode wavelengths target melanin in hair shafts and penetrate to hair follicles for hair removal, reduction and epilation treatments. The combination of wavelengths enables treatment across a wide range of hair colours and skin types; 755 nm (Alex) is effective for finer and lighter hairs, 808 nm provides efficient bulk heating, and 1064 nm penetrates deeper for darker or thicker hair and higher phototypes. The sapphire contact cooling in the handpiece plus multi-stage cooling reduces epidermal thermal load for clinically comfortable procedures.

Technical Table
Laser type: Semiconductor diode laser
Laser wavelengths: 755 + 808 + 1064 nm
Energy output: 1–120 J/cm²
Pulse width: 10–400 ms (adjustable)
Pulse frequency: 1–10 Hz
Display: 12.1-inch color touch LCD screen
Handle display: 2.4-inch color touch screen
Cooling system: Sapphire contact cooling + semiconductor + water + air cooling
Bars: 13 Germany bars
Peak power: 2000 W
Spot sizes: 15x27 mm, 15x15 mm, 12x12 mm (optional 9x9 mm; facial tip optional)
Probe temperature: -10 to 0 °C
Power supply: 110/220V ±10%, 50/60 Hz

Options / SKU
Color: OEM/ODM
Warranty: 3 years
Certification: TUV ISO13485

Technical Specifications

• Model: VD69
• Brand: VCA LASER
• Laser bar: 13 pcs Germany bars (sapphire in handpiece)
• Cooling: Sapphire contact cooling + semiconductor, water and air cooling
• Spot sizes: 15x27 mm / 15x15 mm / 12x12 mm (9x9 mm and facial tip optional)
• Frequency: 1–10 Hz
• Energy output: 1–120 J/cm²
• Pulse width: 10–400 ms (adjustable)
• Displays: 12.1-inch main touch screen; 2.4-inch touch screen on handle
• Peak power: 2000 W
• Probe temperature range: -10 to 0 °C
• Power supply: 110/220V ±10%, 50/60 Hz
