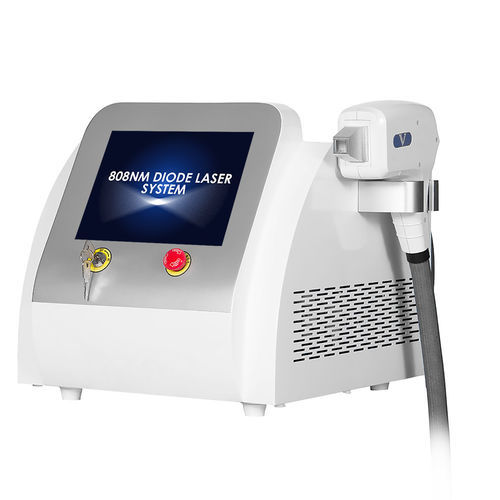

Hair removal laser VD51

sapphirediodetabletop

Imported accessories

• Taiwan Meanwell power supply
• Water pump made in Japan
• Laser bars imported from Germany
• USA CPC water connector
• Germany electronic connector

Principle and application
Treatment is based on selective photothermolysis: melanin in the hair shaft and follicle absorbs 808 nm diode laser energy, generating localized heat that damages follicle structures and prevents regrowth. Designed for permanent hair reduction across a wide range of hair colors and skin phototypes with minimized discomfort and clinical efficiency for beauty clinics and aesthetic centers.

Features

• Treats broad range of hair colors, from dark to light
• Suitable for all skin types (I–VI) with adjustable parameters
• Shorter sessions and reduced patient discomfort
• Adjustable energy, pulse width and frequency for tailored treatments

Packaging & Shipping
Robust protective packaging with internal foam inserts to prevent transport damage. Air and sea freight options available; packaging and documentation can be adapted to regulatory requirements and customer preferences.

Technical specifications

• Model: VD51
• Brand: VCA LASER
• Laser type: Semiconductor (diode) laser
• Wavelength: 808 nm
• Energy output: 10–200 J/cm2 (adjustable)
• Pulse width: 50–400 ms (adjustable)
• Pulse frequency: 1–10 Hz (adjustable)
• Display: 8.4 / 10.4 inch color touch screen
• Spot size: 15x27 mm
• Output power: 2000 W
• Pulse mode: pulsed
• Contact cooling: semiconductor + water + air + sapphire cooling
• Power supply: 110/220V ±10%, 50/60Hz
