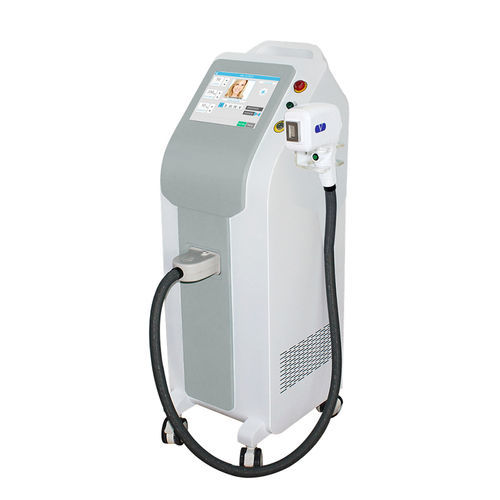

Hair removal laser VD17

sapphirediodetrolley-mounted

Product Brief

• Imported accessories: Taiwan Meanwell power supply
• Water pump made in Japan
• Laser bars imported from Germany
• USA CPC water connector
• Germany electronic connector

Working Principle
Diode laser hair removal uses selective photothermolysis: the 808nm near-infrared laser penetrates the skin to target melanin in the hair shaft and follicle, converting light into heat to thermally damage follicle structures while minimizing impact on surrounding tissue. Controlled energy delivery with contact cooling enables long-term hair reduction.

Key Features & Advantages

• 808nm semiconductor diode for effective melanin absorption and deeper follicle targeting.
• Adjustable energy 10-200 J/cm2, pulse width 50-400 ms and repetition rate 1-10 Hz for treatment customization.
• Contact sapphire cooling combined with semiconductor, water and air cooling to maintain head temperature at 0-5°C.
• Large 15 x 27 mm spot size for faster treatment of larger areas.
• Intelligent color touch screen with recommended parameters by sex, skin type and body area for simplified operation.
• Integrated safety features: flow-rate sensor, stable power supply and industrial connectors for reliable continuous use.

Applications
Designed for aesthetic and medical clinics to perform hair reduction procedures across a wide range of skin phototypes and hair types with year-round application and efficient treatment cycles.

Additional Features

• Water flow-rate monitoring to ensure adequate head cooling.
• Treatment head constructed with sapphire and high-conductivity copper for improved heat dissipation and patient comfort.
• Multiple cooling subsystem options including compressor refrigeration and TEC cooling.
• 8.4 / 10.4 inch color touch screen for system control and parameter display.

Technical specifications
Model: VD17
Brand: VCA LASER
Laser type: Semiconductor diode
Wavelength: 808nm
Energy output: 10-200 J/cm2 (adjustable)
Pulse width: 50-400 ms (adjustable)
Pulse interval: 1-10 Hz (adjustable)
Spot size: 15 x 27 mm2
Output power: 2000 W
Display: 8.4 / 10.4 inch color touch screen
Cooling: Sapphire contact + semiconductor + water + air
Power supply: 110/220V ±10%, 50/60Hz

Warranty & Service
Manufacturer provides 3 years free warranty, lifetime maintenance and training materials (user and maintenance manuals, training CD).
