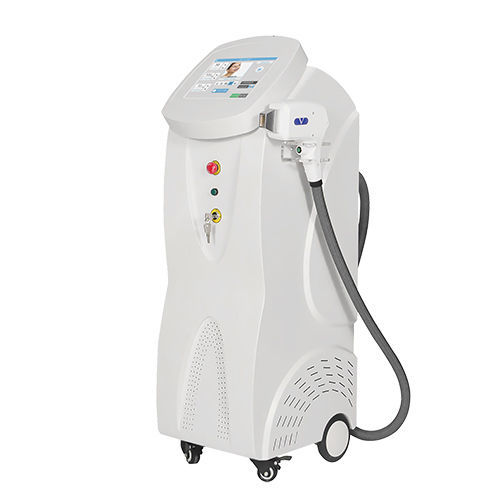

Hair removal laser VD6

sapphirediodetrolley-mounted

Product Overview

• Product type: Diode laser hair removal system
• Brand: VCA LASER
• Model: VD6（白）
• Wavelength: 808nm (option for combined 755/808/1064nm)
• Peak power options: 1200W / 1800W / 3000W

Working Principle
The 808nm diode laser targets melanin in the hair follicle, delivering controlled thermal energy to damage the follicular unit and inhibit regrowth. The system provides adjustable pulse durations to concentrate thermal effect on hair matrix stem cells while minimising impact on surrounding tissue. Integrated contact cooling with a sapphire tip protects the epidermis before, during and after pulses to reduce patient discomfort and allow safe treatment across a range of skin phototypes.

Wavelengths / Combined Wave Use
Available as single 808nm or combined wave (755nm + 808nm + 1064nm) to adapt to different skin and hair types.

• 755nm: indicated for fair skin with fine or blond hair
• 808nm: standard wavelength for most skin types
• 1064nm: suitable for darker skin phototypes

Guarantee, Service & Training
Warranty: 3 years free warranty, lifetime maintenance and 24-hour support line. Service: OEM & ODM options available for distributors. Training: user manual, maintenance manual and training CD provided to guide operation and routine maintenance.

Technical Specifications

• Model: VD6（白）
• Brand: VCA LASER
• Laser type: Semiconductor diode laser
• Laser wavelength: 808nm
• Peak/Output power options: 1200W / 1800W / 3000W (page also lists 2000W as output power)
• Laser energy output: 10 ~ 200 J / cm2, adjustable
• Laser pulse width / Pulse duration: widely optional 50 ~ 1000 ms; table lists 50 ~ 400 ms, adjustable
• Pulse interval / Frequency: 1 ~ 10 Hz, adjustable
• Pulse mode: Pulse mode
• Display interface: 8.4 / 10.4 inch color touch screen
• Spot size: 15 x 27 mm2
• Contact cooling: Semiconductor cooling + water cooling + air cooling + Sapphire contact cooling system
• Power source: 110/220V ±10%, 50/60 Hz
• Peak Power Options (reiterated): 1200W / 1800W / 3000W
