General examination couch OV2-25-125

adultmanualelectric

Product overview

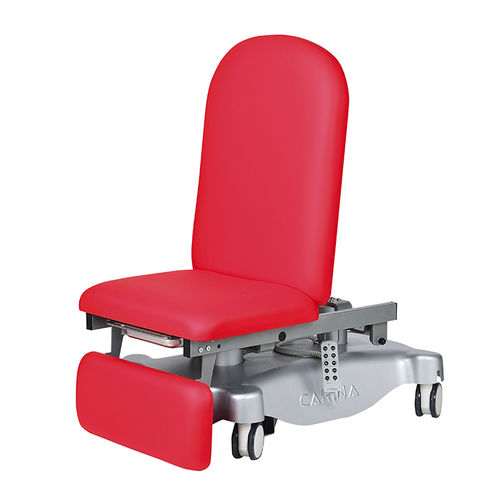

Discover this 3-section medical examination couch with a 70 cm width. The chair configuration provides a very compact footprint, suitable for small spaces. A stainless steel drawer is included. Supplied with stretched upholstery 5 cm thick, fire retardant class M1. The backrest and leg rest are adjustable by two independent gas jacks; the backrest is operated by a bilateral manual handle and the leg rest by a separate handle. Electric height adjustment from 48 to 88 cm is provided via a multifunction hand remote. Fitted with 4 wheels with brakes (diameter 125 mm) for mobility. Trendelenburg position allows quick access to an emergency position. The couch is supplied with a paper roll holder behind the backrest. All exam couches from the OVALIA V2 range are delivered with a shaped base in light grey (RAL 7035).

Range & reference
OVALIA V2 range
Ref.: OV2-25-125

Upholstery colours - standard

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional upholstery colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours - standard

• RAL 7035 (light grey)

Base colours - optional

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Accessories associated (examples)

• Face hole with cap — ACC 832
• Pair of stainless rails 25x10 length 78 cm for OVALIA 3-section — ACC-OVALIA04
• Set of clamps for OV2 3-section couch (with folding leg rest) width 70 cm — ACC76-OV-25-70
• Standard stainless stirrup set diam. 14 mm — ACC 105
• Blood collection gutter (with fitting) — ACC 110
• Blood collection gutter polyurethane (with fitting) — ACC 110POLY
• Set of black leg supports on ball joint, polyurethane foam — ACC 964
• IV pole diam. 16 mm, 2 plastic hooks — ACC 32012
• IV pole stainless diam. 16 mm, 2 stainless hooks — ACC 32014
• Battery for 20 cycles autonomy — ACC BATTERIE01
• Base paint (other than standard grey) — ACC-CAPOT
• 4 fixed glides — ACC-FIXE
• OVALIA / FEMINA foot pedal — ACC-OVALIA03
• OVALIA foot pedal + Y cable (dual control) — ACC-OVALIA05
• Removable ergonomic headrest — ACC TETERGO
• 4 wheels diam. 150 mm, central braking — RL-150

Additional information
Compact chair configuration suitable for small spaces.
Trendelenburg function for emergency positioning.
Shaped base in light grey (RAL 7035) supplied as standard for the OVALIA V2 range.

Technical specifications

• Model range: OVALIA V2
• Reference: OV2-25-125
• Width: 70 cm
• Height adjustment: Electric, from 48 to 88 cm (multifunction hand remote)
• Backrest & leg rest adjustment: Two independent gas jacks; bilateral manual handle for backrest and separate handle for leg rest
• Configuration: 3 sections (chair position) allowing compact chair configuration
• Upholstery: Stretched, 5 cm thickness, fire retardant class M1
• Load capacity: 200 kg
• Mobility: 4 wheels with brakes, diameter 125 mm
• Emergency/Trendelenburg position available
• Standard accessories: Stainless steel drawer; paper roll holder (behind backrest)
• Base: Shaped base in light grey RAL 7035 (standard), optional base colours available
• Origin: French made
