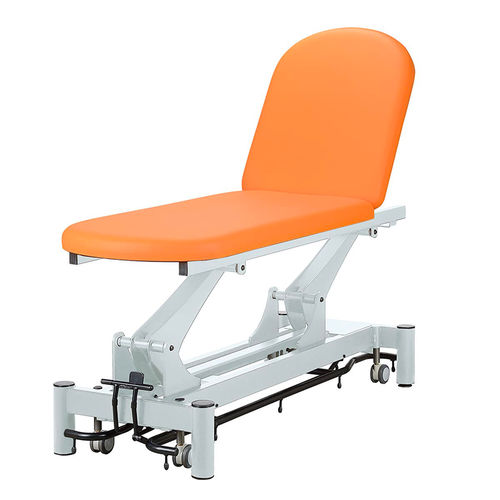

General examination couch 777 77

adultelectricheight-adjustable

Overview
Electric 2-section examination couch, 60 cm wide, designed for clinical examinations. Electric height adjustment is operated via an all-around foot controller, enabling control from any side of the couch. Supplied with stretched upholstery 7 cm thick, fire retardant class M1. Backrest adjustable by gas spring with bilateral manual handle. Height range from 50 to 99 cm. Fitted with 4 retractable wheels Ø75 mm for easy repositioning. Paper roll holder mounted behind the backrest. Painted steel base from the 777 range, delivered in customer-selected colour.

Model / Reference
777 Range
Reference: 777 77

Upholstery colours
Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours (painted steel)

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7035
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Product Features

• Height: Electric height adjustment
• Height (cm): From 50 to 99 cm
• Control: All-around foot controller
• Width: 60 cm
• Upholstery thickness: 7 cm
• Number of sections: 2
• Coating: Fire retardant M1 class
• Load capacity: 150 kg
• Standard accessory: Paper roll holder on head side

Accessories

• Transparent plastic protection for all couches (ACC 514-UNIVERSE)
• Face hole with plug (ACC 832)
• Set of stainless steel leg supports, Ø 14 mm, without clamp (ACC 105)
• Blood collection trough with fitting, without clamp (ACC 110)
• Polyurethane blood collection trough with fitting, without clamp (ACC 110POLY)
• Black leg-rest set on ball joint, polyurethane foam (ACC 964)
• IV pole Ø 16 mm, 2 plastic hooks (ACC 32012)
• Stainless IV pole Ø 16 mm, 2 stainless hooks (ACC 32014)
• Removable ergonomic headrest (ACC TETERGO)
• Prelude cover for leg rest (SLFEMIREPOSE)

Certifications & origin
Product CE compliant. French manufacture.

Technical characteristics

• Model family: 777 Range
• Reference shown on page: 777 77
• Type: Electric examination couch, 2 sections
• Width: 60 cm
• Height adjustment: Electric, range 50–99 cm (all-around foot controller)
• Backrest: Adjustable by gas spring, controlled by bilateral manual handle
• Upholstery: Stretched upholstery, thickness 7 cm, fire retardant M1 class
• Load capacity: 150 kg
• Mobility: 4 retractable wheels, Ø 75 mm
• Standard accessory: Paper roll holder on head side
• Base: Painted steel base, delivered in chosen colour
• Origin / marking: French made, CE marking shown
