General examination couch 326 05T

adultmanualelectric

Overview

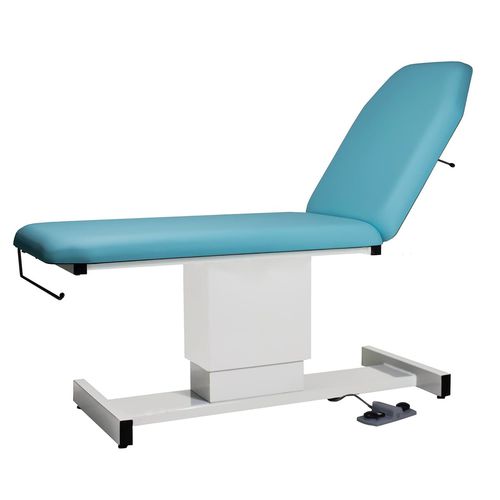

Discover this electric medical couch in 2 sections with a width of 70 cm. Its central narrow base allows the practitioner to be as close to the patient as possible. Upholstery is stretched with 8 cm thickness, fire retardant M1 class. The backrest is adjustable by a gas spring, operated via a bilateral manual handle. Electric height adjustment is controlled by a pedal and ranges from 57 cm to 87 cm. Delivered with a paper roll holder on the foot side. Series: 326 Range. Base: painted steel, delivered in the colour of your choice.

Upholstery colours
Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours (standard)

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7035
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Related accessories

• Plastic protection cover for all couches — ACC 514-UNIVERSE
• Face hole with plug cushion — ACC 832
• Pair of stainless steel stirrups diam. 14mm, without clamp — ACC 105
• Blood test splint in colour without clamp — ACC 110
• Polyurethane blood test splint without clamp — ACC 110POLY
• Pair of legrests on knee system in black polyurethane diam. 14mm, without clamp — ACC 964
• Stainless steel infusion stand diam. 16mm, 2 plastic hooks, without clamp — ACC 32012
• Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks, without clamp — ACC 32014
• Ergonomic head rest — ACC TETERGO
• Cover for legrests (ACC964) in upholstery — SLFEMIREPOSE
• Support retractable castors diam. 50mm for 326 electric, 2 parts — ACC 996
• Pair of clamps for fixation of splints and stirrups diam. 14mm — ACC 76
• Unit clamp to fix infusion stand diam. 14mm for 326 range — ACC 76B
• Electric headrest — ACC 32614
• Half moon head rest width 70 cm fire retardant M1 class — ACC 32670
• Pair of retractable security side rails for 326 range, 2 sections — ACC BARRILIT326A

Product Features
Height : Electric height adjustment
Height (cm) : From 57 to 87 cm
Control : Pedal
Width : 70 cm
Upholstery thickness : 8 cm
Number of sections : 2 sections
Coating : Fire retardant M1 class upholstery
Load capacity : 150 kg
Accessories included as standard : Paper roll holder on the foot side

Technical specifications

• Series: 326 Range
• Reference: 326 05T
• Electric height adjustment with pedal control
• Height range: 57 cm to 87 cm
• Width: 70 cm
• Number of sections: 2
• Upholstery thickness: 8 cm
• Backrest adjustable by gas spring, operated by bilateral manual handle
• Coating: Fire retardant M1 class upholstery
• Load capacity: 150 kg
• Standard accessory: paper roll holder on foot side
• Base: painted steel base (delivered in chosen colour)
• Central and narrow base design to enable practitioner proximity to patient
