General examination couch 326 09T

adultmanualelectric

Product Description

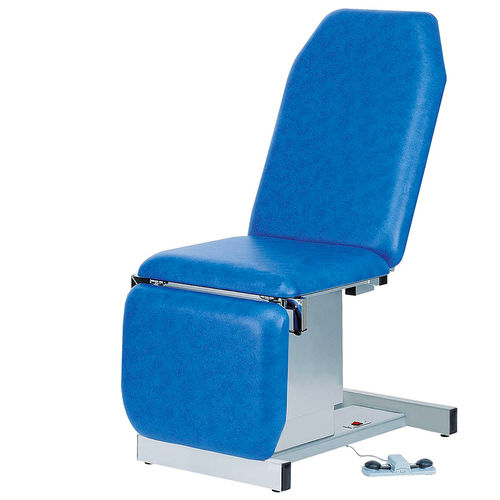

Electric medical examination couch in 3 sections with a width of 70 cm. Chair configuration and central base provide a compact footprint suitable for small treatment rooms. Stretched upholstery: standard 5 cm (M1 fire retardant); 8 cm upholstery available as an option. Backrest and legrest adjustable independently via gas jacks with manual handles. Electric height adjustment from 57 to 87 cm operated by pedal. Supplied with paper roll holder on the head side. Painted steel base with custom colour options. Range: 326. Reference: 326 09T-CONFORT. CE marking. French manufacture.

Upholstery colours
Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours
Standard base colours (RAL)

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7035
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Standard accessory supplied

• Paper roll holder on the head side

Related accessories (examples)

• Face hole with plug cushion — ACC 832
• Pair of stainless steel stirrups Ø14 mm, without clamp — ACC 105
• Half-moon headrest width 70 cm, fire retardant M1 — ACC 32670
• Pair of legrests on knee system in black polyurethane Ø14 mm, without clamp — ACC 964
• Stainless steel infusion stand Ø16 mm, 2 plastic hooks — ACC 32012
• Stainless steel infusion stand Ø16 mm, 2 stainless hooks — ACC 32014
• Electric headrest — ACC 32614
• Electric legrest — ACC 32615
• Retractable support castors Ø50 mm for 326 electric, 3-part — ACC 997
• Unit clamp to fix infusion stand Ø14 mm for 326 range — ACC 76B

Product Features

• Height: Electric height adjustment
• Height (cm): From 57 to 87 cm
• Control: Pedal
• Width: 70 cm
• Upholstery thickness: Standard 5 cm (M1), 8 cm option
• Number of sections: 3 sections (chair position)
• Coating: Fire retardant M1 class
• Load capacity: 150 kg
• Accessories included: Paper roll holder on head side

Technical specifications

• Range: 326
• Reference: 326 09T-CONFORT
• Width: 70 cm
• Height adjustment: Electric, 57–87 cm (pedal control)
• Configuration: 3 sections, chair position
• Backrest & legrest: Independent adjustment via gas jacks with manual handles
• Upholstery thickness: Standard 5 cm (stretched); 8 cm optional
• Upholstery fire rating: M1
• Base: Painted steel (custom colour options)
• Load capacity: 150 kg
• Standard accessory: Paper roll holder on head side
• Certification / Manufacture: CE marking, French manufacture
