Adult examination couch OVALIA V2

electricheight-adjustablereverse Trendelenburg

Product description

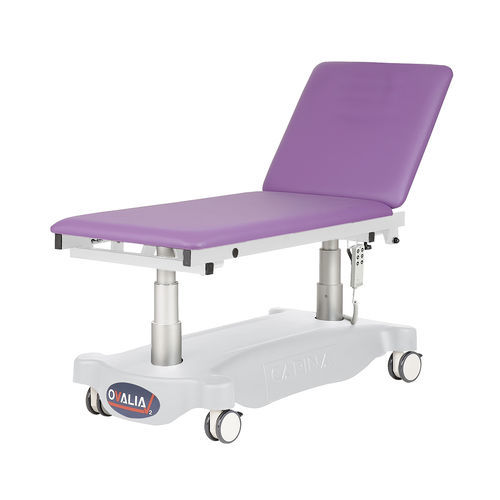

Discover this 2-section electric examination couch with a width of 70 cm. Signature model of the OVALIA V2 series, equipped with a dual-column system offering a wide choice of positions while maintaining vertical lift and a high load capacity. Upholstery stretched, 5 cm thickness, fire retardant classification M1. Backrest adjustable by gas spring with bilateral manual handle. Electric height adjustment from 48 to 88 cm operated via a multifunction hand remote. Fitted with 4 wheels Ø125 mm with brakes for mobility. Emergency positions available via Trendelenburg and Anti-Trendelenburg functions. Supplied with a paper roll holder behind the backrest. Base supplied in light grey colour (RAL 7035) for easy cleaning.

Series and reference
Series: OVALIA V2
Reference: OV2-05-125

Upholstery colours
Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours
Standard: RAL 7035
Optional: RAL 9003, RAL 1013, RAL 1015, RAL 6019, RAL 6033, RAL 6000, RAL 5017, RAL 5002, RAL 5000, RAL 7016, RAL 9005, RAL 1018, RAL 3020, RAL 3003

Accessories (examples of available accessories)

• Plastic protection cover for all couches — ACC 514-UNIVERSE
• Face hole with plug cushion — ACC 832
• Pair of stainless steel rails 25x10 length 1500mm for OVALIA 2 sections — ACC OVALIA02
• Pair of clamps for couches width 70cm — ACC 76-OVALIA-70
• Pair of stainless steel stirrups diam. 14mm, without clamp — ACC 105
• Blood test splint in colour without clamp — ACC 110
• Polyurethane blood test splint without clamp — ACC 110POLY
• Pair of legrests on knee system in black polyurethane, without clamp — ACC 964
• Stainless steel infusion stand diam. 16mm, 2 plastic hooks — ACC 32012
• Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks — ACC 32014
• Half moon head rest width 70cm fire retardant M1 class — ACC 54002
• Pair of retractable security side rails for couches width 70cm — ACC BARRILITOV02
• Battery, capacity 20 cycles — ACC BATTERIE01
• Base cover in different colour — ACC-CAPOT
• 4 skids instead of wheels — ACC-FIXE
• OVALIA / FEMINA pedal — ACC-OVALIA03
• Pedal for OVALIA + connecting cable for double control — ACC-OVALIA05
• Ergonomic head rest — ACC TETERGO
• 4 wheels Ø150 mm with central brake system — RL-150

Product Features
Height: Electric height adjustment
Height (cm): From 48 to 88 cm
Control: Hand remote
Width: 70 cm
Upholstery thickness: 5 cm
Number of sections: 2 sections
Coating: Fire retardant M1 class
Accessories included in standard: Paper roll holder on the head side, wheels Ø125 mm with brakes
Load capacity: 200 kg

Technical specifications

• Series: OVALIA V2
• Reference: OV2-05-125
• Overall width: 70 cm
• Height adjustment range: 48–88 cm (electric)
• Backrest adjustment: Gas jack (manual bilateral handle)
• Number of sections: 2
• Upholstery thickness: 5 cm
• Upholstery fire classification: M1
• Standard mobility: 4 wheels Ø125 mm with brakes (also available with Ø150 mm wheels or on skids)
• Standard accessories: Paper roll holder (behind backrest)
• Emergency positions: Trendelenburg and Anti‑Trendelenburg
• Load capacity: 200 kg
• Standard base colour: Light grey (RAL 7035). Optional base colours and upholstery colours available.
