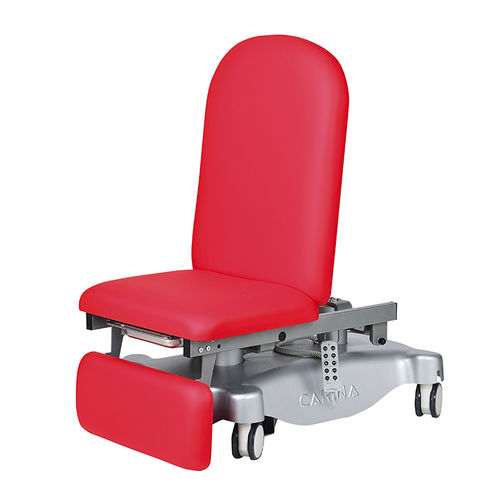

General examination couch OV2-26-125

manualelectricheight-adjustable

Product description
Discover this medical examination couch in a 3-section configuration with a 70 cm width. The chair configuration provides a compact footprint suitable for small consultation or treatment rooms. A stainless steel drawer is included. Upholstery is stretched with 5 cm thickness and fire-retardant M1 classification. Backrest and leg rest are adjusted by two independent gas jacks, operated via a bilateral manual handle for the back and a separate handle for the leg rest. Electric height adjustment is provided from 48 to 88 cm and is controlled by a multifunction pedal. Four Ø125 mm wheels with brakes ensure mobility and secure positioning. Trendelenburg function enables quick access to the emergency tilt position. A paper roll holder is supplied behind the backrest. All exam couches from the OVALIA V2 range are delivered with a shaped base in light grey (RAL 7035).

Range / Reference
OVALIA V2 range — Ref. : OV2-26-125

Standard accessories

• Stainless steel drawer
• Paper roll holder on the head side
• Wheels Ø 125 mm with brakes

Upholstery colours — Standard

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Upholstery colours — Optional

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours — Standard

• RAL 7035

Base colours — Optional

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Associated accessories

• Face hole with cap — ACC 832
• Pair of stainless rails 25x10 length 78 cm for OVALIA 3-section — ACC-OVALIA04
• Set of clamps for OV2 3-section couches (with folding leg rest) width 70 cm — ACC76-OV-25-70
• Standard stainless stirrups Ø 14 mm, without clamp — ACC 105
• Blood collection gutter with fitting, without clamp — ACC 110
• Blood collection gutter polyurethane with fitting, without clamp — ACC 110POLY
• Pair of black leg rests, ball-joint polyurethane foam, Ø 14 mm — ACC 964
• IV pole Ø 16 mm, 2 plastic hooks, without clamp — ACC 32012
• Stainless IV pole Ø 16 mm, 2 stainless hooks, without clamp — ACC 32014
• Battery with autonomy of 20 cycles (1 cycle = one up/down + one up/down of backrest) — ACC BATTERIE01
• Base cover paint other than standard grey (RAL 7035), 16 colours available — ACC-CAPOT
• 4 fixed glides — ACC-FIXE
• OVALIA / FEMINA pedal — ACC-OVALIA03
• Manual handset OVALIA + Y-cable (dual control) — ACC-OVALIA06
• Removable ergonomic headrest — ACC TETERGO
• 4 wheels Ø 150 mm, central braking — RL-150
• Prelude cover for leg rest (SLFEMIREPOSE)

Features / Technical specifications

• Model range: OVALIA V2
• Reference: OV2-26-125
• Width: 70 cm
• Height adjustment: Electric, from 48 to 88 cm
• Configuration: 3 sections (chair position)
• Backrest & leg rest adjustment: 2 independent gas jacks with manual handles
• Control: Multifunction pedal
• Upholstery thickness: 5 cm
• Coating: Fire retardant M1 class
• Load capacity: 200 kg
• Mobility: 4 wheels Ø 125 mm with brakes
• Standard accessories: Stainless steel drawer, paper roll holder (head side), wheels with brakes
• Trendelenburg function: Yes
• Base colour (standard): Light grey (RAL 7035)
