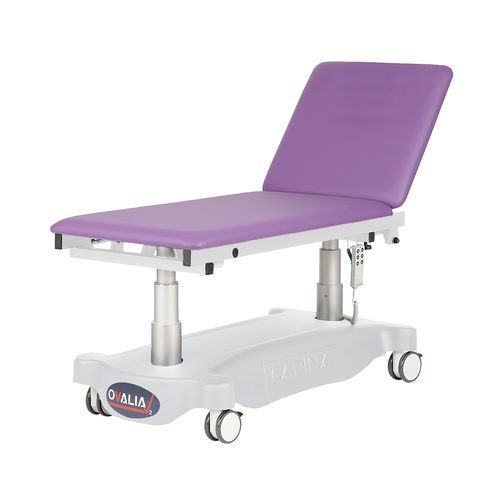

General examination couch OV2-06-125

adultelectricheight-adjustable

Overview
Discover this 2-section examination couch with a width of 70 cm. Double-column system offering a wide range of positions while ensuring vertical lift and high load capacity. Supplied with stretched upholstery 5 cm thick, fire retardant class M1. Backrest adjustable by gas spring, controlled by a bilateral manual handle. Electric height adjustment from 48 to 88 cm via a multifunction pedal. Fitted with four wheels with brakes (Ø125 mm). Emergency positions available thanks to Trendelenburg and Anti-Trendelenburg functions. Supplied with a paper roll holder on the head side. Base finish in light grey (RAL 7035) for easy cleaning.

Range and reference
OVALIA V2 range
Reference: OV2-06-125

Standard features

• 2-section examination couch
• Width: 70 cm
• Electric height adjustment controlled by multifunction pedal
• Backrest adjustable by gas spring with bilateral manual handle
• Upholstery thickness: 5 cm (stretched upholstery)
• Fire retardant coating: M1 class
• Load capacity: 200 kg
• 4 wheels with brakes, diameter 125 mm (paper roll holder included on head side)
• Trendelenburg and Anti-Trendelenburg positions for emergency use
• Shaped base in light grey (RAL 7035) for easy cleaning

Options / Suggested configurations

• Suggested wheels: RL-125
• Also available on skids
• Also available with wheels diameter 150 mm with brakes

Product Features
Height: Electric height adjustment
Height (cm): From 48 to 88 cm
Control: Pedal
Width: 70 cm
Upholstery thickness: 5 cm
Number of sections: 2 sections
Coating: Fire retardant M1 class
Load capacity: 200 kg
Accessories included in standard: Paper roll holder on the head side, wheels Ø125 mm with brakes

Accessories / Associated accessories

• Transparent plastic protection for all couches — ACC 514-UNIVERSE
• Face hole with plug — ACC 832
• Pair of stainless rails 25x10 length 150 cm for OVALIA 2-section — ACC OVALIA02
• Set of clamps for couches OV2 width 70 cm — ACC 76-OVALIA-70
• Set of standard stainless stirrups Ø 14 mm — ACC 105
• Blood collection gutter with fitting — ACC 110
• Blood collection gutter polyurethane — ACC 110POLY
• Set of black leg rests (ball joint) — ACC 964
• IV pole Ø 16 mm, 2 plastic hooks — ACC 32012
• IV pole stainless Ø 16 mm, 2 stainless hooks — ACC 32014
• Half-moon headrest width 70 cm, non-fire M1 coating — ACC 54002
• Pair of retractable side rails for 70 cm couches — ACC BARRILITOV02
• Battery (20 cycles autonomy) — ACC BATTERIE01
• Base paint (option, 16 colours) — ACC-CAPOT
• 4 fixed skids — ACC-FIXE
• Pedal OVALIA / FEMINA — ACC-OVALIA03
• Hand remote OVALIA + Y cable (double control) — ACC-OVALIA06
• 4 wheels Ø150 mm, central braking — RL-150

Remarks
Presented with RL-125 wheels; options available (skids, Ø150 wheels with central braking), headrests and various accessories listed above.

Technical specifications

• Range: OVALIA V2
• Reference: OV2-06-125
• Width: 70 cm
• Height adjustment: Electric (48 - 88 cm)
• Control: Multifunction pedal
• Backrest: Gas spring adjustable, bilateral manual handle
• Sections: 2
• Upholstery thickness: 5 cm
• Coating: Fire retardant M1 class
• Load capacity: 200 kg
• Standard accessories: Paper roll holder (head side), 4 wheels Ø125 mm with brakes
• Base colour (standard): Light grey (RAL 7035)
• Optional: skids or wheels Ø150 mm with brakes, RL-125 wheels
