General examination couch OV2-08-125

adultmanualelectric

Overview

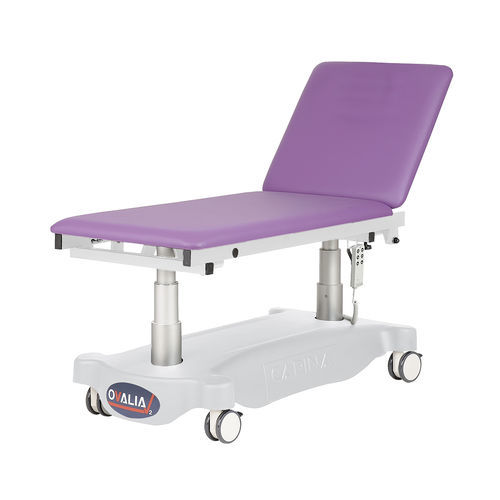

Discover the OVALIA V2 two-section examination couch with an 80 cm width. The double-column system delivers a wide choice of positions while maintaining vertical travel and a high load capacity. Upholstery is 5 cm thick, fire retardant class M1. The backrest is gas-assisted and adjustable via a bilateral manual handle. Electric height adjustment from 48 to 88 cm operated by a multifunction hand remote. Supplied with four 125 mm diameter castors with brakes. Trendelenburg and anti-Trendelenburg emergency positions are available. Supplied with a paper roll holder at the head. The shaped base in light grey (RAL 7035) facilitates cleaning.

Range & Reference
OVALIA V2 range
Ref.: OV2-08-125

Upholstery colours
Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours
Standard

• RAL 7035

Optional

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Product Features

• Height adjustment: Electric, 48-88 cm
• Control: Multifunction hand remote
• Width: 80 cm
• Upholstery thickness: 5 cm
• Number of sections: 2
• Backrest: Adjustable by gas jack, bilateral manual handle
• Coating: Fire retardant class M1
• Mobility: 4 castors Ø125 mm with brakes (other wheel/skid options available)
• Trendelenburg / Anti-Trendelenburg: Yes (emergency positions)
• Standard accessories: Paper roll holder on head side
• Load capacity: 200 kg

Accessories / Options mentioned

• Standard wheels RL-125 (delivered with Ø125 mm castors)
• Also available on skids or Ø150 mm wheels with brakes
• Various optional accessories for OVALIA range (side rails, stirrups, pedals, battery, head rests, covers, clamps, infusion stands, etc.)

Technical specifications

• Model series: OVALIA V2
• Reference: OV2-08-125
• Width: 80 cm
• Height adjustment: Electric, range 48-88 cm
• Control: Multifunction hand remote
• Backrest: Adjustable by gas jack, bilateral manual handle
• Sections: 2
• Upholstery thickness: 5 cm
• Upholstery fire classification: M1
• Base colour (standard): Light grey (RAL 7035)
• Mobility: 4 castors Ø125 mm with brakes (other options available)
• Trendelenburg / Anti-Trendelenburg: Yes
• Standard accessories: Paper roll holder on head side
• Load capacity: 200 kg
