Adult examination table OV2-09-125

electro-pneumaticheight-adjustablewith adjustable backrest

Overview

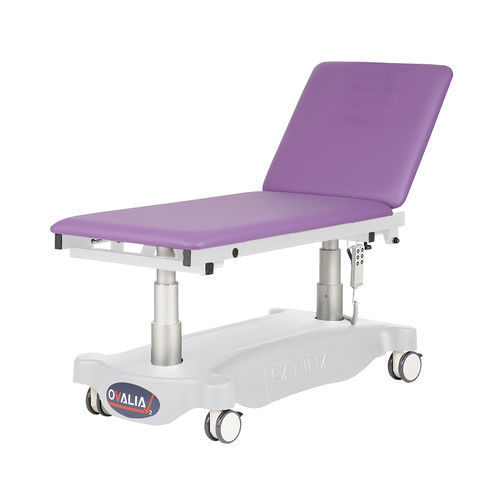

Two-section electric examination couch from the OVALIA V2 range, reference OV2-09-125. Double-column system for a wide choice of positions while maintaining vertical lift and high load capacity. Stretched upholstery 5 cm thick, fire retardant class M1. Backrest adjustable by gas strut with bilateral manual handle. Electric height adjustment from 48 to 88 cm via a multifunction pedal. Supplied with 4 wheels with brakes (Ø 125 mm). Trendelenburg and anti-Trendelenburg functions for emergency positioning. Paper roll holder supplied behind the backrest. Standard shaped base in light grey (RAL 7035).

Reference and range
Ref.: OV2-09-125
OVALIA V2 range

Key features

• Type: 2-section examination couch
• Width: 80 cm
• Electric height adjustment: 48–88 cm
• Control: multifunction pedal
• Backrest: gas-strut adjustable with bilateral manual handle
• Upholstery thickness: 5 cm, fire retardant M1 class
• Wheels: 4 wheels with brakes, Ø 125 mm (optional skids or Ø 150 mm wheels)
• Trendelenburg / Anti-Trendelenburg functions
• Load capacity: 200 kg
• Standard base colour: RAL 7035

Accessories & related items (examples)

• Paper roll holder on the head side (included)
• Wheels Ø 125 mm with brakes (included)
• Optional: plastic protection cover (ACC 514-UNIVERSE)
• Face hole with plug cushion (ACC 832)
• Pair of clamps for 80 cm couches (ACC 76-OVALIA-80)
• Pair of legrests (ACC 964)
• RL-150 wheels (4 wheels Ø 150 mm with central brake)
• Battery (ACC BATTERIE01)
• OVALIA pedal (ACC-OVALIA03) and hand remote (ACC-OVALIA06)
• Ergonomic head rest (ACC TETERGO)

Upholstery and base colours

• Standard upholstery colours: Arno, Garonne, Potomac, Amour, Mississipi, St Laurent, Rhône, Missouri, Seine, Amazone
• Optional upholstery colours: Abysse, Cendre, Origan, Géranium, Réglisse, Prune, Perle, Ficelle, Terre, Béton, Châtaigne, Chocolat, Pensée, Pétrole, Turquoise, Granny, Absinthe, Ananas, Orange, Fuschia, Tomate
• Base colours – Standard: RAL 7035; Optional: RAL 9003, RAL 1013, RAL 1015, RAL 6019, RAL 6033, RAL 6000, RAL 5017, RAL 5002, RAL 5000, RAL 7016, RAL 9005, RAL 1018, RAL 3020, RAL 3003

Technical specifications

• Range: OVALIA V2
• Reference: OV2-09-125
• Number of sections: 2
• Width: 80 cm
• Height adjustment: electric, 48–88 cm
• Control: multifunction pedal
• Backrest: gas strut adjustable (manual bilateral handle)
• Upholstery thickness: 5 cm
• Coating: fire retardant M1 class
• Wheels: 4 wheels with brakes Ø 125 mm (optional Ø 150 mm or skids)
• Paper roll holder: included (behind backrest / head side)
• Base colour: standard light grey RAL 7035 (other RAL options available)
• Load capacity: 200 kg
