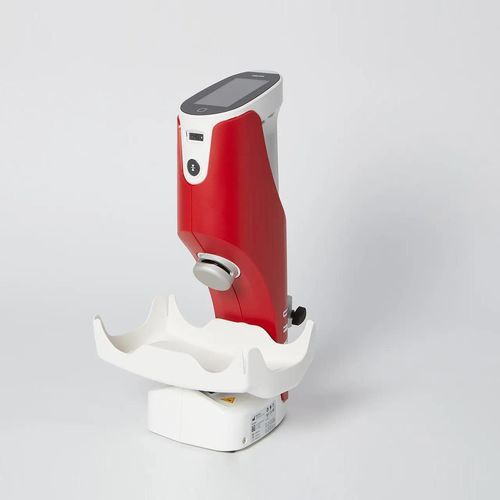

Blood sample laboratory mixer Milano

rotarydigitalmobile

Overview
Milano is a mixer-scale for blood collection combining weight measurement and mixing functions with bidirectional data communication for collection management.

Award
Delcon Milano was awarded the 2022 Compasso d'Oro (XXVII ADI Compasso D'Oro) for innovation in blood collection devices, developed in collaboration with Cefriel and the New York Blood Center.

Introducing Milano
Presentation video available demonstrating Milano features and operation.

Main features
BECS / ERP connectivity at its core: Milano supports bidirectional integration with leading ERPs to manage collection workflows and enable procedures such as integrated donor identity verification via the Milano display. Bidirectionality is supported via DelcoNet, Delcon's data management middleware.

Meant for mobile environments
Slim enclosure and integrated barcode reader suit mobile collection logistics. Swappable battery design enables rapid battery changes and supports up to 100 collections per full charge. An optional transport case is available to enhance safety during transport.

Highly precise for faster processing
Milano is certified as a measurement device. The scale provides 1 g precision and a dedicated start/stop mode to accurately weigh the bag at end of collection, reducing processing time in the component laboratory.

Other features

• Custom configuration of collection quantities, alarms and required operator actions
• Configurable low and high flow thresholds with pre-alert and warning logic
• Integrated CCD barcode reader; optional RFID tag reader/writer
• Glass touchscreen with audible feedback and bounce prevention
• Multicolor alert LED visible from all directions for easy identification
• Custom workflow creation to meet site-specific procedures
• Collection of process and operator data via DelcoNet
• Scale mode for on-the-spot weight/volume measurement with tare and net-weight functions
• Post-venepuncture bleeding time check with dedicated alert
• Ethernet data transmission (wired LAN and Wi‑Fi) supporting networks up to 250 devices
• Accessories: stand pole, 6-battery charger, and transport case

Technical specifications

• Dimensions: 240 W x 210 D x 432 H mm (9.4 x 8.3 x 17 in)
• Weight: 3.3 kg including battery (7.3 lb)
• Power supply: 24 V DC input from 100–240 V AC external adapter (wall-plug)
• Line frequency: 50–60 Hz
• Power consumption: 30 VA max
• Weighing range: 10–990 ml or g (0.02–2.18 lb)
• Accuracy: ±3 g for weights less than 300 g; ±1% for 300–1000 g
• Battery capacity: up to 100 donations
• Charge time: 4 hours (device off), 20 hours (device on)
• Applied part: Type CF (according to IEC 60601-1)
• Classification – MDD 93/42 and MDR 2017/745: Class I medical device
• FDA clearance & class: BK190429, Class 2 (in accordance with 21 CFR 864.9195)
