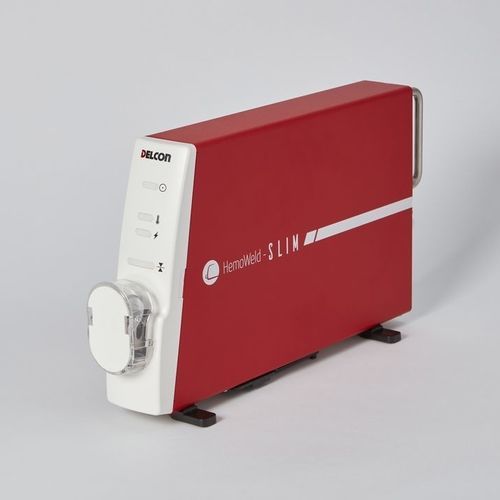

Medical sealer HemoWeld Slim™

laboratoryautomaticfor blood bag tubes

Overview
Automatic benchtop sealer to segment and clamp blood tubing, featuring a clamp design that reduces operator errors and speeds up processing.

Main features
Cascade configuration
HemoWeld Slim autodetects the cascade configuration and performs a blood pressure–proof clamping sequence toward the bag. In cascade mode, an automatic LED indicates correct bag-side positioning. The cascade connection is linear with no dummy plugs or false cables.

Secondary RF output
Equipped with a secondary RF output to connect an optional sealing handgun for additional flexibility in laboratory and component lab settings.

Automatic clamping and sealing
Optical detection at tube insertion triggers automatic clamping and radio frequency sealing, allowing a one-move fast seal. The cap integrates a tube positioning system to maximize operation speed. An optional foot switch can be connected to start sealing by press.

Other features

• Slide-in tube design for easy insertion
• Optical tube detection
• Automatic sealing time selection according to tube type
• Optical and acoustic alerts for humidity or contamination on electrodes
• Easily removable cap for cleaning with automatic cap-removal detection
• Secondary RF output for optional sealing handgun connection
• Ability to power off cascade devices and operate a single sealer without detaching cables

Technical characteristics / specifications

• Dimensions (main body): 400 x 220 x 58 mm (15.8 x 8.7 x 2.3 in)
• Weight: 3.7 kg (8.2 lbs)
• Power supply: 100/240 Vac
• Line frequency: 50÷60 Hz
• Power consumption: 315 VA max
• Sealing time: 1 to 2 s depending on temperature and tubing outer diameter, thickness and hardness
• Working frequency: 40.68 MHz
• RF output: max 80 W
• Types of tube: standard medical-grade PVC tubing up to 6.35 mm (1/4 in) at 20°C
• Applied part: no applied part
• Classification – MDR 2017/745: Class 1 medical device
• Class of protection: 1 (according to IEC 60601-1)
