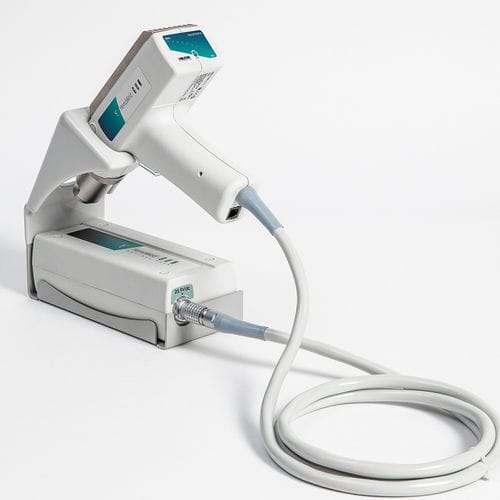

Medical sealer HemoWeld Gun™

automatedfor blood bag tubeshand-held

Overview
Designed for both handheld and benchtop use, HemoWeld Gun™ delivers automated RF sealing for medical PVC blood bag tubing with a high-capacity battery enabling extended continuous operation.

Main features
Automated sealing procedure
HemoWeld Gun™ automates clamping pressure and RF activation time to standardise seals and eliminate side traction on tubing.

Up to 1500 sealings
With optimal conditions, a fully charged power unit supports up to 1500 sealing procedures. The device can perform up to 100 seals consecutively before requiring a cooldown.

Easy control
Rear LEDs and audible feedback indicate sealing status and provide immediate alert notifications.

High quality materials
The cap and head are machined from CNC aluminium for durability and easy cleaning; the cap is removable without tools for inspection.

Other features

• Built-in RF electronics with optimized power management
• Motor-operated electrode
• Tension-relief safety jaws
• Integrated splash guard
• Lightweight, long-life power pack
• Data connection for log files and settings
• Optional plastic transport case

Tech spec
Handheld:

• Dimensions: 185 x 55 x 150 (h) mm (7.3 x 2.2 x 5.9 inch)
• Weight: 688 g with cable (1.5 lbs)
• RF Output: 60 W max with automatic regulation

Power unit:

• Dimensions: 160 x 50 x 70 (h) mm (6.3 x 2 x 2.8 inch)
• Weight: 582 g (1.3 lbs)
• Battery capacity: 25.2 Vdc – 2500 mAh
• Sealing capacity: up to 1500 sealing procedures in optimal conditions with fully charged power unit

Power cord:

• Detachable from the power unit
• Soft silicone material, 1.5 m length

Other technical details:

• Tube type: medical-grade PVC tubing, O.D. 2.7–5.5 mm
• Sealing time: 0.8–3.0 s (typically 1.2 s) depending on tube O.D., thickness and hardness
• Applied part: Type CF (according to IEC 60601-1)
• MDR 2017/745 classification: Class 1 Medical Device
• Protection class: Internally powered equipment (IEC 60601-1)

Characteristics / Technical specifications

• Product: HemoWeld Gun™ (handheld and benchtop sealer)
• Handheld dimensions: 185 x 55 x 150 mm (7.3 x 2.2 x 5.9 inch)
• Handheld weight: 688 g with cable (1.5 lbs)
• RF Output: 60 W max with automatic regulation
• Power unit dimensions: 160 x 50 x 70 mm (6.3 x 2 x 2.8 inch)
• Power unit weight: 582 g (1.3 lbs)
• Battery: 25.2 Vdc – 2500 mAh
• Sealing capacity (optimal): up to 1500 sealing procedures per full charge
• Continuous sealing capability: up to 100 seals in a row before overheating
• Power cord: detachable, soft silicone, 1.5 m long
• Tube compatibility: PVC medical-grade tubing 2.7–5.5 mm O.D.
• Sealing time: 0.8–3.0 seconds (typically 1.2 seconds)
• Applied part classification: Type CF (IEC 60601-1)
• MDR classification: Class 1 Medical Device (2017/745)
• Protection class: Internally powered equipment (IEC 60601-1)
• Materials: CNC aluminium cap and head; quick tool-free cap removal for inspection
• Additional features: built-in RF electronics, motor-operated electrode, tension-relief safety jaws, integrated splash guard, data connection for log files and settings, optional plastic transport case
