Medical sealer HemoWeld MC

for productionlaboratorysemi-automatic

Product overview

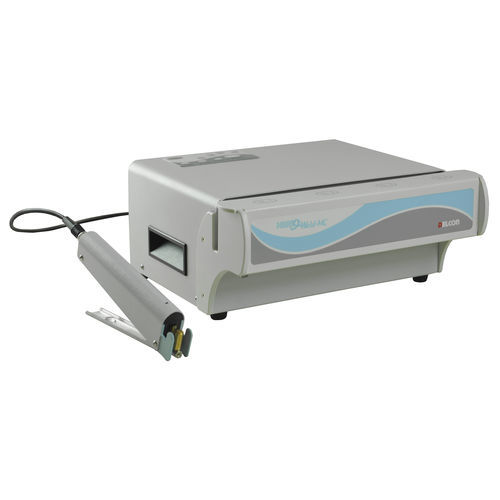

HemoWeld MC is a bench RF sealer designed to rapidly prepare up to four segments of medical-grade PVC tubing. It supports medium-to-heavy duty sealing operations for batch processing of transfusion, collection or infusion tubing. The operator may program and activate any combination of the four clamps for flexible workflow.

Main features

• Four programmable clamps: individual or simultaneous sealing cycles selectable by the operator.
• Automatic radiofrequency sealing for repeatable, hermetic seals on PVC tubing.
• Programmable sealing time (0.8–3.0 s) to adapt to tubing outer diameter, wall thickness and hardness.
• Compact bench-top design suited to laboratory and production environments.

Other features

• Safety anti-spark protection system.
• Overheat protection system.
• LED and audible alerts for process status.
• Optional separate handgun accessory to increase working flexibility.
• Ergonomic layout for operator access and handling.
• Transparent splash guard to protect the operator from leakage.
• Tube guide to ensure correct positioning and precise sealing.

Technical specifications

• Dimensions: 320D x 290W x 140H mm (12.6D x 11.4W x 5.5H in)
• Weight: 8 kg (17.6 lbs)
• Power voltage: 115 / 230 V~
• Line frequency: 50–60 Hz
• Working freq.: 40.680 MHz
• Power consumption: 420 VA max
• Sealing time: 0.8” ÷ 3” (typically 1.2”) depending on tubing outer diameter, thickness and hardness
• RF output: 80 W
• Types of tube: standard medical-grade PVC tubing up to 6.0 mm O.D.
• Applied part: no applied part
• Classification - MDD 93/42: Class I Medical Device
• Class of protection: 1 (according to IEC 60601-1)
• NOT available for US Market
