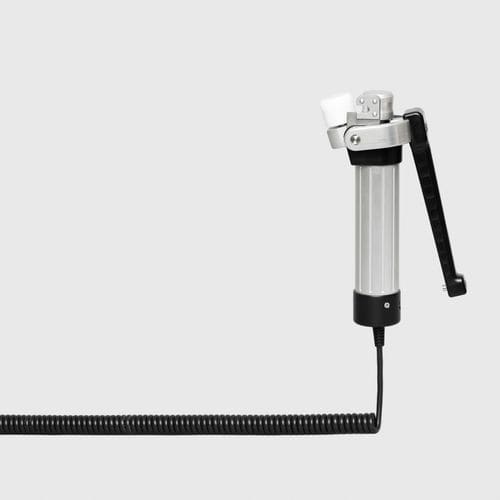

Blood bank blood tube stripper BTS

for blood transfusion centersautomatic

Product overview
The BTS automatic tube stripper is designed to evacuate blood from collection tubes quickly and reliably. Compatible with standard blood container systems, it offers continuous operation with low maintenance and an ergonomic workflow suitable for blood component production lines.

Main features

• Tilting rolling heads
• Automatic start when the lever is closed
• End-of-tube detection with built-in limit brake
• Automatic stop when a bag is detected
• Rollers with tube guide perforation
• Tube stripping speed: 30 m/min
• High-efficiency 24V motor, 40W
• Dual ball bearing drive
• Overload protection
• Maintenance-free design

Equipment of the device

• BTS tube stripper
• Mains power supply AC/DC adapter IN: 100-240V 50-60Hz OUT: 24V 3.0A
• Flat screwdriver
• Allen key set
• User manual
• Transport case
• Available to order online

Technical specifications

• Tilting rolling heads
• Automatic start when the lever is closed
• End-of-tube detection with built-in limit brake
• Automatic stop when a bag is detected
• Rollers with tube guide perforation
• Optional BTS Table Holder
• Spiral cable length: 2 m
• Dual ball bearing drive
• Tube stripping speed: 30 m/min
• Motor: 24V, 40W (high efficiency)
• Overload protection
• Mains power supply: AC/DC adapter IN: 100-240V 50-60Hz OUT: 24V 3.0A
• Weight: 733 g (without power supply)
• Weight: 1269 g (with power supply and carrying case)
• Dimensions: L x W x H = 179 x 53 x 89 mm
• Dimensions (with carrying case): L x W x H = 320 x 240 x 61 mm
• Medical Device Class: I
• CE marking: Yes
• Maintenance-free
