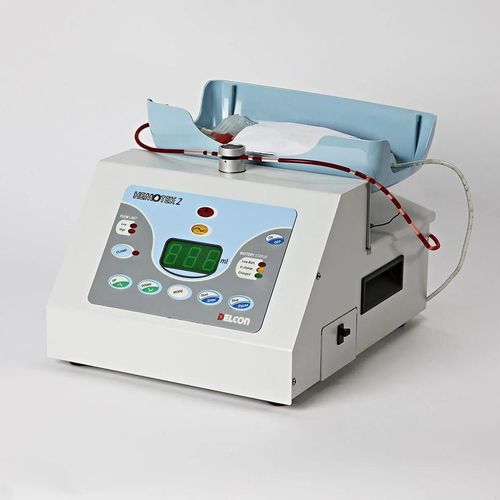

Blood collection monitor HemoTek 2™

Overview
HemoTek 2™ is a compact, high‑accuracy blood collection monitor with a metal housing and rocking tray mixing system, designed for controlled whole blood collection in clinics, blood banks and mobile collection units.

Main features

• Delcon quality in a metal body suitable for clinical environments.
• Rocking tray system for consistent mixing during collection.
• Automatic tare, programmable collection volumes and customizable alerts.
• Optional 12 VDC battery pack for up to 80 donations on a single charge.
• Accuracy ±2% in the 300–500 ml range; weighing range covers typical donation volumes.

Notes

• Engineered to Delcon standards for reliability in blood bank and mobile use.

Technical specifications

• Dimensions: 310D x 260W x 220H mm (12.2D x 10.2W x 8.7H in)
• Weight: 5 kg without battery (11 lb)
• Power supply: 115/230 VAC or 12 VDC battery pack (optional)
• Line frequency: 50–60 Hz
• Power consumption: 30 VA max
• Max collection time: 20 minutes
• Accuracy: ±2% within 300–500 ml
• Weighing range: 10–990 ml (0.02–2.18 lb)
• Battery capacity: up to 80 donations with fully charged battery
• Type of mixing: Rocking motion; speed up to 18 impulses/minute
• Applied part: Type CF (according to IEC 60601-1)
• Classification — MDR 2017/745: Class I medical device
• Protection class: 1 (according to IEC 60601-1)
• NOT available for US market
