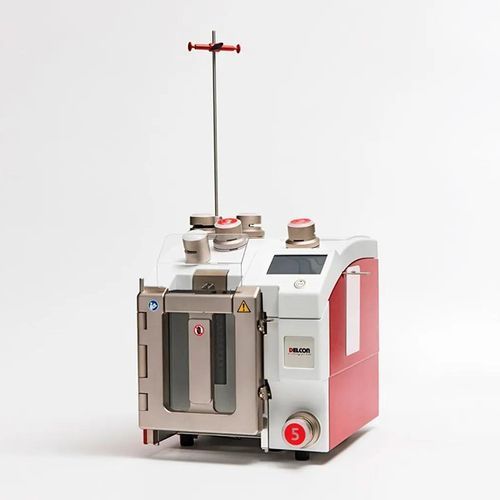

Benchtop blood component extractor Giotto Monza™

Short description
Automatic extractor designed for standardized blood component production with efficient workflows, built-in safety features and minimal waste. The unit automates bag handling, separation layer control and precise weighing to support reproducible blood component processing.

Main features

• 5 clamps central to the extraction process: they open or inhibit flow between bags, seal tubes at process end and provide clear operational feedback.
• Each clamp integrates a dual optical sensor to detect fluid presence and correct tube positioning, preventing incorrect operations due to missing or misaligned tubes.
• Two-colour illuminated dome on each clamp for bag loading status and diagnostics.
• 10 optical detectors in the main press for fine control of the separation layer position and high motion accuracy, enabling precise buffy coat adjustment and hematocrit control.
• Main press made of flat, wear-resistant glass for easy cleaning; press movement is electronically controlled with a speed profile up to 5 steps.
• Smooth one-piece moulded top cover to minimise liquid ingress and simplify cleaning.

Other features

• Colour touchscreen with icon-based user interface and animated monitoring.
• Integrated splash guard.
• Bidirectional data management (import/export).
• Three built-in scales: vertical scale for PRP/PC or additive solution; right lateral scale for buffy-coat, PRP, PC or RBC (in T&B process); main press scale for manual reading of start or final weight.
• Optional external scale to manage RBCs.
• Built-in RFID antennas.
• Optional barcode reader and handheld sealer.
• Optical detector.
• Serial, Ethernet and Wi-Fi connections.

Technical specifications

• Dimensions: 325W x 422D x 420H mm (12,8W x 16,6D x 16,5H inch)
• Weight: 38 kg (83,8 lbs)
• Power supply: 100-240 VAC
• Power consumption: 300 VA max
• Line frequency: 50-60 Hz
• Optoelectronic sensors: 5 in clamps (tube in), 1 in OPT1 (top tube), 10 in main press (OPT2)
• Scales: 3 for single press, 4 for double press, plus one external (optional)
• Sealing clamps: 5 (1 used as flow regulator)
• Scales weighting accuracy: 0÷300 g accuracy ±3 g (0÷0,66 lbs accuracy ±0,007 lbs)
• Average extraction duration (for nominal 450 ml bags): < 45'' in T&T bags (only Plasma); < 1'30'' in T&T bags (including transfer of 100 ml of additive solution); < 2'30'' in T&B bags (depends on WB haematocrit and centrifugation)
• Applied part: none
• Classification – MDR 2017/745: Class I medical device
• Class of protection: 1 (according to IEC 60601-1)
• Not available for US market
