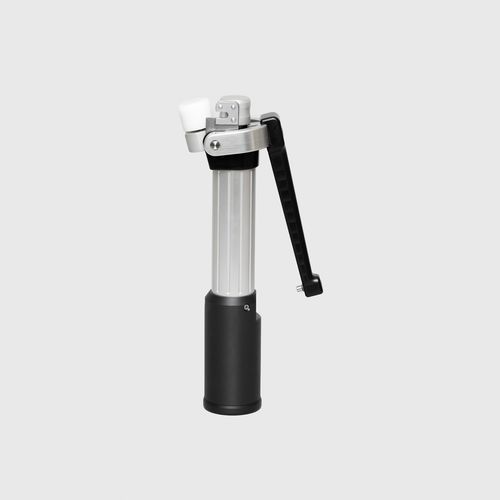

Blood bank blood tube stripper BTS-B

automatic

Overview
The BTS-B cordless automatic tube stripper is designed to expel blood from collection tubing during blood donation and blood component production. Battery-powered and mains-free, it ensures consistent, fast stripping compatible with all commercially available blood container systems. The unit minimizes clot formation in tubing and integrates automatic controls to streamline workflow at donation sites and processing labs.

Main features

• Cordless operation for mobility and use at donation sites
• Tilting rolling heads with tube guide perforation for reliable squeezing
• Automatic start when the lever is closed and automatic stop when a bag is detected
• Built-in limit brake to detect end of tube and prevent damage
• Dual ball bearing drive and overload protection for continuous operation
• Tube stripping speed: 27 m/min; energy-saving 12V motor, 25W

Included accessories

• BTS-B tube stripper
• Battery charger AC/DC IN: 100-240V 50-60Hz OUT: 12V 1.2A with LED charging indicator
• Flat screwdriver
• Allen key set
• User manual
• Transport case

Technical specifications

• Model: BTS-B
• Cordless, mains-free operation
• Motor: 12V, 25W (energy-saving)
• Battery: built-in 10.8V 3500 mA with overload and overcurrent protection
• Charging time: < 6 hours; Charger: AC/DC IN 100-240V 50-60Hz OUT 12V 1.2A with LED indicator
• Tube stripping speed: 27 m/min
• Drive: Dual ball bearing drive
• Safety features: overload protection; automatic stop when a bag is detected; built-in limit brake for end-of-tube detection
• Battery capacity sufficient for at least 500 donations (counted for 1.5 m standard tubing)
• Weight without power supply: 948 g; Weight with charger and case: 1459 g
• Dimensions: 257 x 53 x 89 mm; With carrying case: 320 x 240 x 61 mm
• Maintenance-free design for routine clinical use

Model and compliance

• Model: BTS-B
• Medical Device Class: I
• CE marking: Yes
