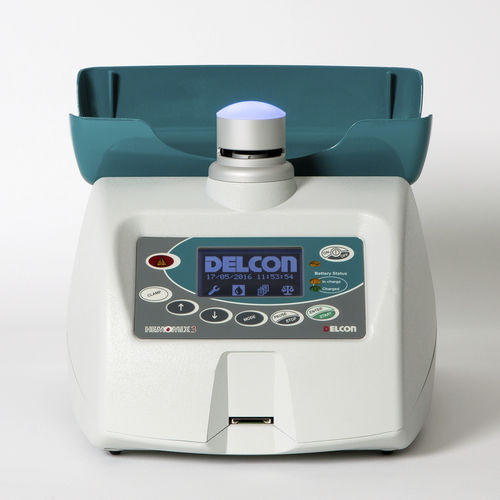

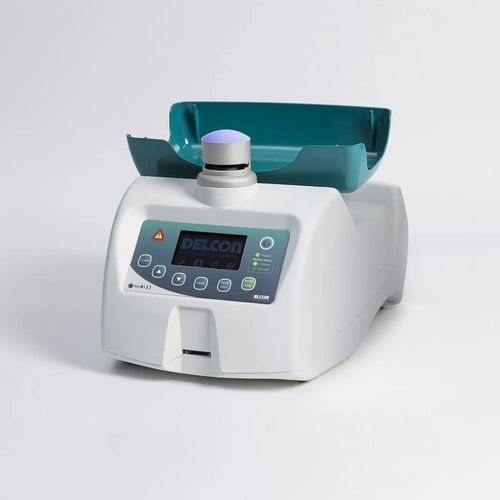

Blood collection monitor with barcode reader HemoMix 3™

Overview
HemoMix 3 is a blood collection monitor designed for clinical and transfusion settings. It integrates a patented 3D orbital mixing tray and bidirectional data communication to streamline collection workflows and traceability.

Main features

• Up to 20 fully customizable workflows accessible from device or PC.
• On-device adjustment of target volume; up to 5 user presets for one-key selection.
• Internal memory stores up to 999 donations; diagnostic codes and graphical alerts for warnings and anomalies.

Software and connectivity
LinkMix software enables two-way communication with LIMS/BECS or laboratory instrument management systems (BM/DM levels). Data exchange supports barcode (optional reader) and RFID (optional antennas). Connectivity options include two-way RS485, LAN or Wi‑Fi for networks of up to 250 devices.

Usability and indications
HemoMix 3 features a prominent clamp with top LED status indicator to improve collection-room workflow. Collection volume selectable between 10 and 990 units (ml or g). Automatic tare, semi-automatic calibration with optional reference mass, and multilingual display (up to 5 languages).

Technology
Programmable 3D orbital mixing with central pivot, programmable pauses and rotation inversion (clockwise/counterclockwise) for optimized homogenization of collected blood components (patent pending).

Other features

• AC powered or optional rechargeable battery (up to 70 collections per full charge).
• RFID read/write capability for automatic data capture without operator action.
• Encrypted two-way Wi‑Fi communication.
• Optional CCD or laser barcode reader.

Technical specifications

• Dimensions: 351 D x 235 H x 273 W mm (13.8 D x 9.3 H x 10.7 W in).
• Weight: 3.4 kg without battery (7.5 lbs).
• Power supply: 115/230 VAC or 12 VDC battery pack (optional).
• Line frequency: 50–60 Hz.
• Power consumption: 45 VA max.
• Max collection time: 20 min.
• Accuracy: ±2 units within 10–199 units; ±1% within 200–600 units (ml or g).
• Weighing range: 10–990 units in ml or g (0.02–2.18 lbs).
• Battery capacity (optional): up to 70 donations per full charge.
• Type of mixing: 3D with central pivot; programmable motion, pauses and inversion.
• Applied part: Type CF (according to IEC 60601-1).
• Classification – MDR 2017/745: Class I medical device.
• Protection class: 1 (according to IEC 60601-1).
