Chemical fume cupboard exhaustcontainmentlaboratory
Add to favorites
Compare this product
Characteristics
- Function
- chemical, containment, exhaust
- Applications
- laboratory
- Configuration
- floor-standing
- Air flow type
- vented
- Exhaust mode
- with extraction system
- Structure material
- stainless steel
- Other characteristics
- with sliding front sash, custom
- Class
- not specified
- Length
120 cm, 150 cm, 180 cm, 200 cm
(47.24 in, 59.06 in, 70.87 in, 78.74 in)- Depth
15 cm
(5.91 in)
Description
Product overview

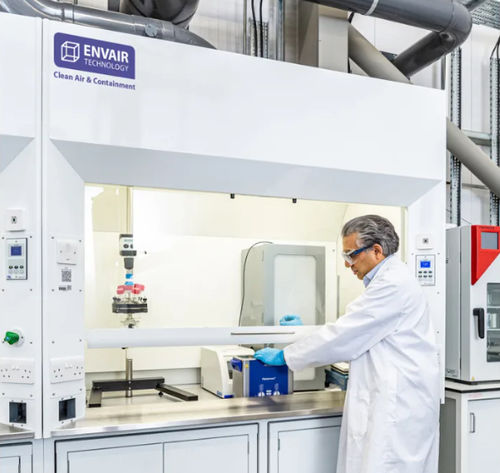

The standard ducted fume cupboard design from Envair Technology provides a cost-effective industrial solution for controlled extraction. Available in standard widths of 1200 mm, 1500 mm, 1800 mm and 2000 mm or manufactured to custom dimensions, the unit incorporates 150 mm side cheeks to integrate mechanical and electrical services. A full range of optional features can be specified, including alternative worktop finishes, combination-style sashes and VAV control systems. The Envair Technology range of industrial fume cupboards is designed and built to comply with BS EN 14175.
Key Features
Technical specifications
The standard ducted fume cupboard design from Envair Technology provides a cost-effective industrial solution for controlled extraction. Available in standard widths of 1200 mm, 1500 mm, 1800 mm and 2000 mm or manufactured to custom dimensions, the unit incorporates 150 mm side cheeks to integrate mechanical and electrical services. A full range of optional features can be specified, including alternative worktop finishes, combination-style sashes and VAV control systems. The Envair Technology range of industrial fume cupboards is designed and built to comply with BS EN 14175.
Key Features
- Aerodynamic zintec mild steel outer carcass with epoxy-polyester powder-coated finish
- 316-grade stainless steel front cill
- Infill panelling by extended continuous side panels and hinged access panel for maintenance
- Internal chamber and baffles constructed from Trespa
- Worktops manufactured from cast epoxy resin and dished
- Toughened glass vertical sliding sash with failsafe mechanism
- Auto-resetting sash lock
- Twin fluorescent light fittings
- Programmable control panels to meet EN14175 incorporating sash-high alarms, low-airflow alarms and fan stop/start facility
- Ventilated storage cupboards – suitable for acids, solvents or flammables
Technical specifications
- Standard widths: 1200 mm, 1500 mm, 1800 mm and 2000 mm (custom sizes available)
- Side cheeks: 150 mm wide to allow integration of mechanical and electrical services
- Outer carcass material: zintec mild steel with epoxy-polyester powder coat
- Front cill: 316-grade stainless steel
- Internal chamber and baffles: Trespa
- Worktop: cast epoxy resin, dished
- Sash: toughened glass vertical sliding sash with failsafe mechanism
- Sash lock: auto-resetting
- Lighting: twin fluorescent fittings
- Controls: programmable control panels complying with EN14175; includes sash-high alarms, low-airflow alarms and fan stop/start facility
- Optional features: choice of worktop finishes, combination-style sashes, VAV controls
- Storage: ventilated storage cupboards for acids, solvents or flammables
- Standards: complies with BS EN 14175
