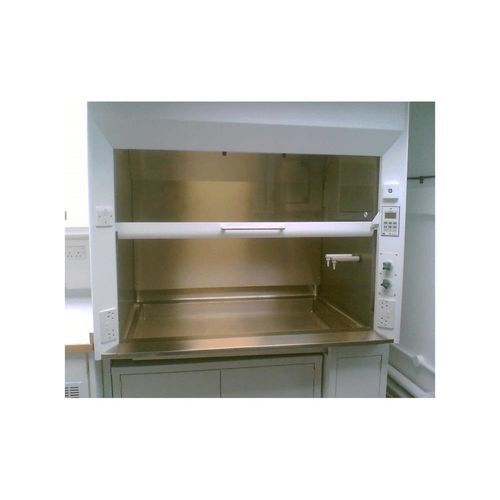

Radioisotope handling fume cupboard

laboratoryfor nuclear medicinefloor-standing

Overview
The internal working chamber is manufactured from single-piece formed 316 grade stainless steel with radius corners, creating a crevice-free and mastic-free environment that is simple to decontaminate. Units are supplied in standard dimensions or can be custom-made to project requirements. Designed for safe handling of radioisotopes in laboratory and nuclear medicine settings.

Key Features

• Available in standard or custom sizes
• Aerodynamic Zintec mild steel outer carcass with epoxy polyester powder coat finish
• 316 grade stainless steel front cill
• Infill panelling via extended continuous side panels and hinged access panel for maintenance
• Internal chamber sides, back, soffit and worktop fully welded from 316 grade stainless steel and polished to provide a seamless monolithic chamber suitable for radioactive use
• Toughened glass vertical sliding sash with failsafe mechanism
• Auto-resetting sash lock
• Twin fluorescent light fittings
• Programmable control panels compliant with EN14175 including sash-high alarms, low airflow alarms and fan stop/start
• Ventilated storage cupboards suitable for acids, solvents or flammables

Applications
Intended for laboratories and nuclear medicine departments where handling of radioisotopes requires a crevice-free, easily decontaminated stainless steel chamber and reliable containment and alarm systems.

Materials & Construction
Internal chamber: single-piece formed 316 grade stainless steel with radius corners and polished welded seams for a crevice-free interior; Outer carcass: aerodynamic Zintec mild steel with epoxy polyester powder coated finish; Front cill: 316 grade stainless steel; Sash: toughened vertical sliding glass with failsafe mechanism and auto-resetting lock; Infill and access panels: extended continuous side panels with hinged maintenance access.

Technical specifications

• Inner chamber material: 316 grade stainless steel, one-piece formed, polished welded seams (crevice-free)
• Outer carcass: Zintec mild steel with epoxy polyester powder coat finish
• Front cill: 316 grade stainless steel
• Sash: toughened glass vertical sliding sash with failsafe mechanism and auto-resetting sash lock
• Controls: Programmable control panels compliant with EN14175; sash-high alarm; low airflow alarm; fan stop/start facility
• Lighting: Twin fluorescent fittings
• Storage: Ventilated storage cupboards suitable for acids, solvents or flammables
• Sizes: Available in standard or custom sizes
• Cleaning/maintenance: Crevice-free, mastic-free internal design to minimise contaminant build-up
