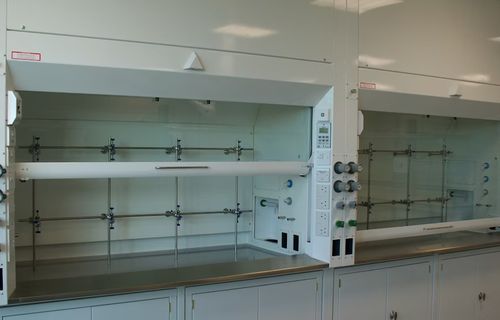

Exhaust fume cupboard

laboratoryfor research laboratoriesfloor-standing

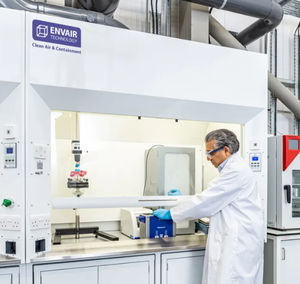

OverviewEnvair Technology Low Volume Fume Cupboard is engineered to reduce laboratory energy consumption and carbon footprint by lowering the amount of heated or cooled air extracted from the facility. Specified to operate at 0.3 m/sec face velocity (industry norm 0.5 m/sec), the unit achieves approximately a 40% reduction in extracted air volume. Independently tested to BS EN 14175-3, it exceeds requirements for inner plane containment, outer plane containment and robustness of containment.

Key Features

• Available in standard and bespoke sizes
• Aerodynamic zintec mild steel outer carcass with epoxy polyester powder coat finish
• 316 grade stainless steel front cill
• Extended continuous side panels with hinged access panel for maintenance
• Internal chamber and baffles manufactured from Trespa
• Dished cast epoxy resin worktops
• Toughened glass vertical sliding sash with failsafe mechanism and auto-resetting sash lock
• Twin fluorescent light fittings
• Programmable control panel meeting EN 14175 with sash high and low airflow alarms, and fan start/stop facility
• VAV-compatible controls for energy-efficient ventilation
• Optional ventilated storage cupboards suitable for acids, solvents or flammables

Construction & Materials

• Outer carcass: aerodynamic zintec mild steel with epoxy polyester powder coat
• Front cill: 316 grade stainless steel
• Internal chamber and baffles: Trespa
• Worktop: dished cast epoxy resin
• Sash: toughened glass vertical sliding sash with failsafe mechanism

Controls & Safety

• Programmable control panel compliant with EN 14175 requirements
• Sash high alarms and low airflow alarms
• Fan stop/start facility and VAV compatibility
• Auto-resetting sash lock and failsafe sash mechanisms
• Ventilated storage cupboards for safe storage of acids, solvents or flammables (optional)

Technical specifications

• Design face velocity: 0.3 m/sec (reduced from typical 0.5 m/sec)
• Estimated air volume reduction: ~40% versus standard face velocity
• Standards: Independently tested to BS EN 14175-3 (meets/exceeds inner plane, outer plane and robustness requirements)
• Materials: zintec mild steel outer carcass (epoxy polyester coated); 316 stainless steel front cill; Trespa internal chamber and baffles; cast epoxy resin worktops
• Sash: toughened glass vertical sliding sash with failsafe and auto-resetting lock
• Lighting: twin fluorescent fittings
• Controls: programmable EN 14175-compliant controls with sash and airflow alarms, fan stop/start; VAV control capable
• Options: ventilated storage cupboards (acid/solvent/flammable rated); standard and bespoke sizes
