Exhaust fume cupboard

total exhaustlaboratorymobile

Description

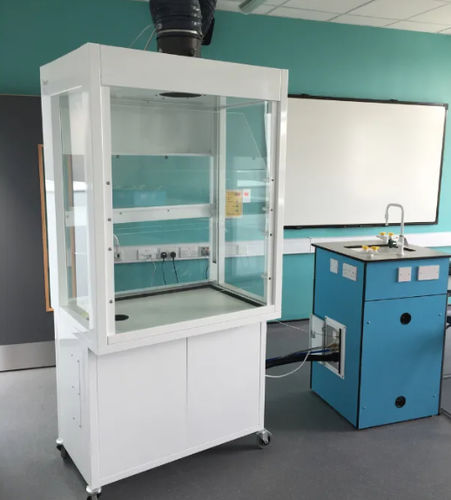

Envair Technology’s semi-mobile ducted fume cupboard is designed for classroom demonstrations and practical teaching where full visibility and flexible positioning are required. Mounted on castors, the unit can be moved up to 2 m and secured in a robust docking station that houses water, gas, drainage and power connections for quick-release utility connections.

Key Features

• 360° visibility ideal for classroom demonstrations
• Movable by up to 2 metres and lockable in position via docking station
• All fumes extracted to atmosphere via PVC ductwork (100% exhaust)
• Trespa Toplab work surface
• Vertically sliding toughened glass sash
• Integral high level lighting
• Airflow control panel
• RCD protected double socket outlet
• Remote operated gas outlet
• Available widths: 1000 mm (standard), also available in 1200 mm and 1500 mm

Compliance / Testing
Designed in accordance with CLEAPSS Guide G9 – Fume Cupboards in Schools (revision of DfEE Building Bulletin 88) and independently tested and passed by CLEAPSS. Product documentation also references BS EN 14175 compliance for ducted fume cupboards.

Technical specifications

• Dimensions (standard): 1000 mm wide x 715 mm deep x 2070 mm high (other widths available: 1200 mm and 1500 mm)
• Mobility: castors; movable up to 2 m and lockable into docking station
• Exhaust: 100% ducted exhaust to atmosphere via PVC ductwork
• Nominal face velocity: 0.4 m/s at a 400 mm sash opening
• Work surface: Trespa Toplab
• Sash: vertically sliding toughened glass
• Lighting: integral high level lighting
• Controls: airflow control panel
• Electrical: RCD protected double socket outlet
• Gas: remote operated gas outlet
• Voltage: 240 V / 1 ph / 50 Hz
• Benefits: low running costs (no annual filter replacements or consumable changes required)
