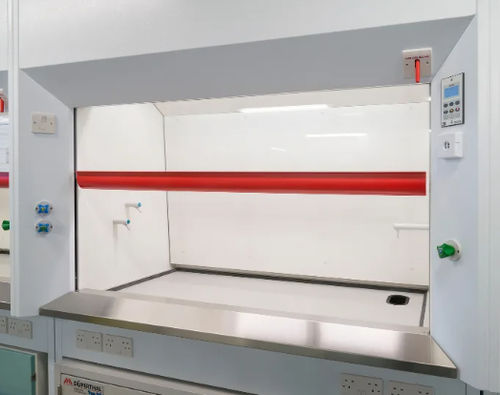

Distillation fume cupboard

total exhaustlaboratoryfor the pharmaceutical industry

Overview
Whatever industry your laboratory is serving, from pharmaceutical to academia, Envair Technology’s custom ducted fume cupboards provide first-class protection for scientific professionals.

Standards & Operation
Fully designed and developed in accordance with BS EN14175, the fume cupboards draw air through the front opening and expel it outside the building via a dedicated vent system to ensure:

• Gases, fumes, aerosols and dust are contained within the inner chamber
• Users are protected from flying fragments and sprays
• Laboratory avoids contamination by dangerous concentrations of flammable or other hazardous chemicals

Materials & Linings
All models benefit from low energy consumption and are fully configurable to your environment. Inner chamber linings and workbase materials are selected from an approved range with each being suitable for the intended application. Material options include:

• Trespa® solid grade laminate
• Cast epoxy resin
• Grade 316 stainless steel, satin polished
• Grade 316 stainless steel, epoxy powder coated
• Lead-lined
• Polypropylene
• Ceramic
• Glass

Service & Validation
Service levels include full functional design specifications and quality statements with supporting validation documentation. Development, production and execution of approved FAT and SAT protocols are provided. A comprehensive handover documentation package can be maintained for issuance during site commissioning and validation.

Key Features

• Available in bench mounted, walk-in or distillation models in a range of sizes with constant or variable air volume (CAV or VAV)
• Double skin, all steel construction, powder coated for a durable corrosion-resistant finish
• Hinged high level access panel for easy access when servicing
• Long life LED illumination
• Frameless sash in 6mm thick toughened safety glass
• Easy to operate sash lock with fully automatic reset function
• Radius profiled PVC finger grip to full length of sash
• Grade 316 stainless steel bottom cill, available fixed or hinged
• Inner chamber linings and workbase are designed to be replaceable in the event of future damage
• Full range of ventilated and lined underbench storage cabinets

Specifications

• Standard: BS EN 14175 compliant
• Models: bench mounted, walk-in, distillation
• Air volume: Constant Air Volume (CAV) or Variable Air Volume (VAV) options
• Construction: double skin steel, powder coated finish
• Sash: frameless 6mm toughened safety glass with automatic sash lock and radius PVC finger grip
• Lighting: long life LED illumination
• Workbase & linings: replaceable; configurable materials (Trespa®, epoxy, 316 stainless, polypropylene, ceramic, glass, lead-lined)
• Bottom cill: Grade 316 stainless steel, fixed or hinged
• Energy: designed for low energy consumption
• Validation support: FAT and SAT protocol development and execution; full handover documentation available
