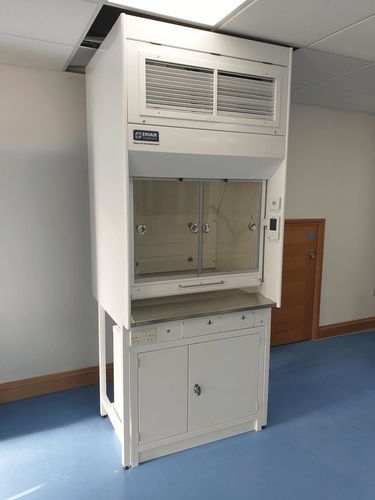

Chemical fume cupboard

exhaustcontainmentlaboratory

Overview
For laboratories looking to maximise working space within the fume cupboard, narrow-walled fume cupboards from Envair Technology reduce side walls from 150 mm to 50 mm, increasing usable bench width by approximately 200 mm. Mechanical and electrical services are relocated beneath the work surface to free side space. Available in standard and bespoke sizes with an epoxy-coated steel outer finish, 316 stainless steel front cill and EN14175-compliant controls.

Key Features

• Choice of standard and custom sizes
• Aerodynamic zintec mild steel outer carcass with epoxy polyester powder coated finish
• 316 grade stainless steel front cill
• Infill panelling via extended continuous side panels and a hinged panel for maintenance access
• Internal chamber and baffles constructed from Trespa
• Worktops manufactured from cast epoxy resin and dished
• Toughened glass vertical sliding sash with failsafe mechanism
• Auto-resetting sash lock
• Twin fluorescent light fittings
• Programmable control panels to meet EN14175 incorporating sash high alarms, low airflow alarms and fan stop/start facility
• Ventilated storage cupboards – suitable for acids, solvents or flammables

Technical specifications

• Side wall thickness: 50 mm (reduced from 150 mm)
• Increase in working width: +200 mm compared to standard side-walled model
• Outer carcass: aerodynamic zintec mild steel with epoxy polyester powder coat
• Front cill: 316 grade stainless steel
• Internal chamber & baffles: Trespa
• Worktop: cast epoxy resin, dished
• Sash: toughened glass vertical sliding with failsafe mechanism
• Sash lock: auto-resetting
• Lighting: twin fluorescent fittings
• Controls: programmable, EN14175-compliant; includes sash high alarm, low airflow alarm, fan stop/start
• Service arrangement: mechanical and electrical services relocated beneath the work surface
• Storage: ventilated cupboards suitable for acids, solvents or flammables
