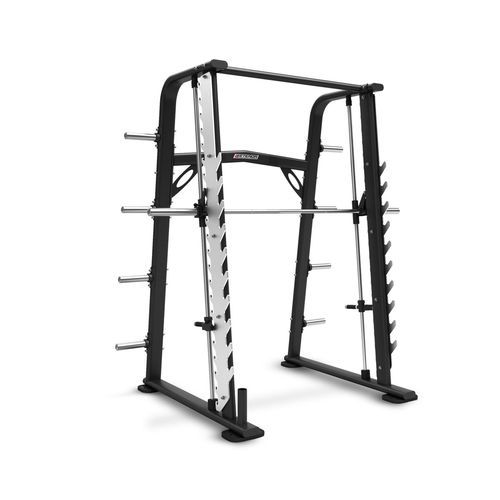

Smith machine with pull-up bar PC0927A

Overview
This Smith Machine Multipower PC0927A is a guided squat rack designed for multifunctional use in gyms and functional training centers. It uses ground, hardened guide bars with 21 adjustable positions to provide controlled movement for squats, bench press, military press, rows and other variations targeting the whole body.

Key features

• Design with recommended load of up to 500 kg (250 kg per side).
• Includes multiple weight‑plate storage pegs for organized storage.
• Intended for medium to intensive use in training facilities.
• Usage level: Medium.

Technical Specifications

• Frame: oval steel tube 50 x 100 mm, 2 mm thickness.
• Guide bars: ground and normalized steel with hard chrome finish.
• Paint: three‑layer treatment including epoxy powder coat and anti‑corrosion primer.
• Plate bar compatibility: 50 mm plates.
• Height‑adjustable safety stops.
• Inclination: 6°.
• Guided bar anchor system with 21 positions.
• Free‑weight bar anchor system with 10 positions.
• Legs with PVC protectors.
• 8 record hangers.
• 1 bar support.

Details and Weight

• Length: 210.2 cm.
• Width: 123 cm.
• Height: 223.4 cm.
• Weight: 137 kg.
• Recommended maximum load: 250 kg per side (total up to 500 kg).

Specifications / technical data

• Structure: oval steel tube 50 x 100 mm, 2 mm thickness.
• Guide bars: ground & normalized steel, hard chrome finish.
• Paint treatment: three layers (anti‑corrosion primer + epoxy powder coat).
• Plate compatibility: 50 mm diameter.
• Safety stops: height adjustable.
• Inclination: 6°.
• Guided bar positions: 21.
• Free weight bar positions: 10.
• Weight storage: multiple plate pegs included.
• Leg protection: PVC protectors.
• Dimensions (L x W x H): 210.2 x 123 x 223.4 cm.
• Machine weight: 137 kg.
• Recommended max load: 250 kg per side (up to 500 kg total).
