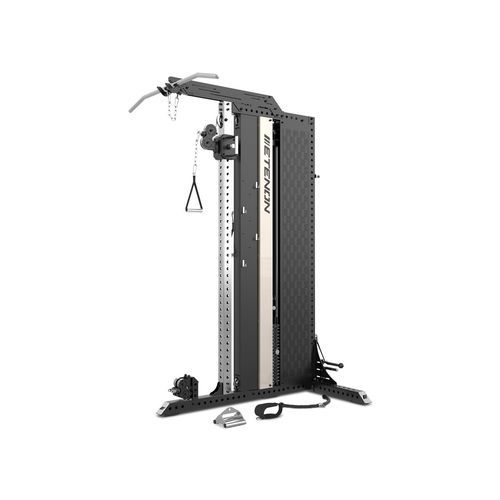

Single-cable gym pulley PC0930ABC

highlow

Product Summary
The Adjustable Pulley Functional Trainer Station PC0930A+B+C provides a complete commercial solution for strength and functional training. Its adjustable pulley system supports a wide variety of exercises and user heights, with dedicated high and low pulley stations suitable for pulling movements such as lat pulldowns and rows. The compact footprint and integrated storage make it suitable for professional training areas and multi‑unit racks.

Technical Specifications

• Structure made of reinforced Q235 steel
• Main tubes: 75 x 75 mm, 2.5 mm thickness
• Structural reinforcements: 75 x 75 mm, 3 mm thickness
• Chrome‑plated steel columns with 35 height positions and laser‑cut numbering
• Configurable 1:1 and 2:1 pulley ratio to adapt resistance and cable travel for different training styles
• Complete system including high and low pulley stations
• Multi‑directional pulley movement with up to 180° rotation
• Cable transmission with smooth glide via integrated rollers
• Pulleys in aluminum alloy for durability and precision
• Integrated 90 kg weight stack with magnetic selector pin
• Pulley height adjustment via aluminum pop pin with side grip
• High pulley with chrome knurled lat bar for improved grip
• Pulley adjustment via sliding carriage for quick height changes
• Modular design for standalone use or integration with other units
• Protective metal cover reducing noise during use
• Stainless steel components including removable hooks and decorative elements
• Integrated storage system with side hooks and rear lower storage area

Includes

• Single stirrup handle
• Close‑grip V handle
• Short straight bar
• Biceps/Triceps handle
• Lat pull‑down bar
• Rope attachment
• Ankle/Wrist strap
• Long extension chain
• Short extension chain
• Carabiners

Composed of

• PC0930A (Adjustable Pulley Functional Trainer Station)
• PC0930B (Rear Base for Single Pulley)
• PC0930C (Attachment Set for Single Pulley)

Compatible accessories

• Dumbbell tray attachment
• Kettlebell tray attachment
• Leg extension bench attachment
• Single pulley and squat rack connector attachment
• Weight plate tray attachment
• Alternate kettlebell tray position
• Alternate dumbbell tray position
• Medicine ball tray attachment
• Storage rack upright attachment
• Squat rack support attachment
• Weight plate holder attachment (set of 6)
• Pull‑up bar attachment
• Jammer arms attachment
• Trunk blaster attachment with T‑bar handle
• Dip bars attachment

Dimensions & Weight

• Length: 149 cm
• Width: 130 cm
• Height: 236 cm
• Net weight: 225 kg
• Weight stack: 90 kg
• Footprint: 1.94 m²
• Structure material: reinforced Q235 steel
• Main tube dimensions: 75 x 75 mm (2.5 mm)
• Structural reinforcement thickness: 3 mm
• Pulleys: aluminum alloy
• Pulley ratios: configurable 1:1 and 2:1
