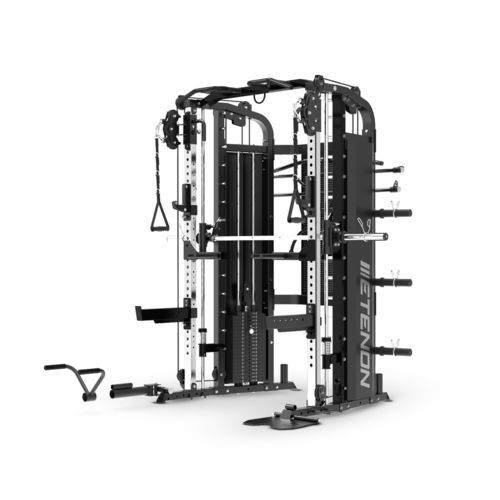

Smith machine with pull-up bar PC0965

Product Overview
Turn any space into a complete training area with the Etenon Multifunction Smith Machine PC0965. Integrated Smith system and dual pulley allow full-body training without switching equipment. Optimize floor space and streamline facility workflows. Reference: PC0965

Technical Specifications

• Structure made of reinforced Q235 steel for intensive use.
• Main tube section: 50 × 70 × 2 mm.
• Chrome-plated steel columns with 21 height positions and laser-cut numbering.
• Industrial-grade bearings and high-quality hardware.
• Base with non-slip PVC feet.
• Reinforced nylon pulley system with cable transmission.
• Configurable 1:1 and 2:1 pulley ratio: adapts resistance and cable travel for strength or functional/isolation work.
• Multi-directional pulley movement up to 275° rotation.
• Two 100 kg weight stacks (one per pulley) with magnetic selector pin.
• Pulley height adjustment via pop-pin with position indicator.
• Smith bar with chrome finish, knurling and integrated safety catches.
• Height-adjustable anchoring system with 13 positions.
• Shock absorption system using rubber elements.
• Pull-up bar with multiple grip positions.
• Central upper hook for resistance bands.
• Compatible with 50 mm weight plates.
• Biomechanics designed for universal accessibility.
• Accessory storage supports with removable and adjustable hooks.
• Includes 6 weight plate storage holders (up to 65 kg per holder).
• Two rear vertical tubular supports for bar storage.

Included

• Single stirrup handle
• Close-grip V handle
• Lat pulldown long bar
• Short straight bar
• Biceps/Triceps handle
• High pulley handle
• Rope attachment
• Ankle strap / Wrist strap

Components

• Dip handles
• T-bar row landmine
• Resistance band peg
• Footplate

Details and Weight

• Length: 139 cm
• Width: 204.5 cm
• Height: 215 cm
• Weight: 436 kg
• Weight stack: 200 kg (100 kg per side)
• Maximum bar load: 200 kg
• Maximum squat rack load: 251.7 kg
• Footprint: 1.15 m²

Technical specifications (summary)

• Material: reinforced Q235 steel structure with chrome-plated columns.
• Main tube: 50 × 70 × 2 mm.
• Pulleys: reinforced nylon, cable transmission, up to 275° movement.
• Pulley ratios: configurable 1:1 and 2:1.
• Weight stacks: 2 × 100 kg (magnetic selector).
• Smith system: chrome-finished guided bar with knurling and safety catches.
• Adjustability: 21 pulley positions, anchoring 13 positions.
• Shock absorption: rubber element system.
• Attachments & storage: multiple handles included; 6 plate holders (65 kg each) + 2 rear bar supports.
• Compatibility: accepts 50 mm plates.
• Dimensions & mass: L 139 cm × W 204.5 cm × H 215 cm; machine weight 436 kg; footprint 1.15 m².
