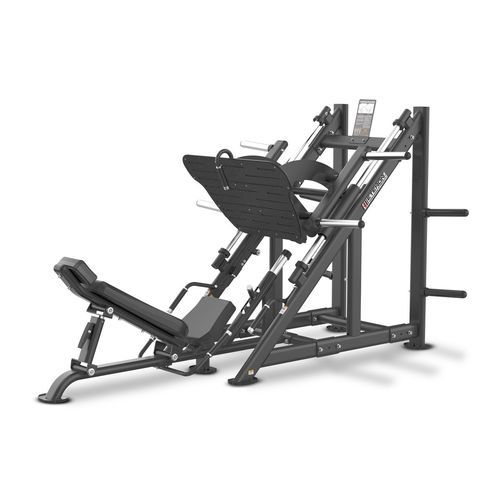

Leg press gym station PL4026

inclined leg presswith free weights

Product description
The PL40 45° Incline Leg Press (Reference: PL4026) provides a guided inclined path for lower-body training, concentrating load on quadriceps, glutes and hamstrings while reducing lumbar strain. Adjustable settings and multiple safety stop positions allow adaptation to different users and controlled training with heavy loads. The machine is built for repeated professional use and integrates user guidance for safe operation.

Technical specifications

• Structure: Q235 steel, profile 50 x 120 mm, thickness 3 mm.
• Seat and backrest: high-density FOAM with PU covering, antibacterial upholstery for intensive use.
• Safety: adjustable stop with 4 positions.
• Backrest: inclination adjustable via rear adjustment system.
• Handles: TPV coated grips fixed with aluminum collars.
• Two pairs of lateral handles: one for support during exercise and one for carriage lock/unlock.
• Weight plate holders: 8 total (4 for loading, 4 for storage).
• Mechanical components and fasteners selected for smooth, long-lasting operation.
• Footplate: non-slip surface with upper grip to facilitate entry/exit.
• Integrated instructional placard on top of the structure.
• Biomechanical design suitable for multiple user profiles.
• Bases fitted with non-slip PVC supports to improve stability.

Dimensions and capacities

• Length: 260 cm
• Width: 150 cm
• Height: 156 cm
• Machine weight: 292 kg
• Max load (total): 450 kg (225 kg per side)
• Maximum user weight: 155 kg
• Reference: PL4026

Remarks

• Designed for intensive, professional training environments.
• Technical datasheet available from the supplier on request.

Technical details

• Material (structure): Q235 steel, profile 50 x 120 mm, thickness 3 mm.
• Upholstery: high-density foam with PU antibacterial covering.
• Adjustment: rear backrest adjustment; safety stop with 4 positions.
• Handles and grips: TPV coating, aluminum collars; two pairs of lateral handles.
• Weight holders: 8 plate holders for loading and storage.
• Footplate: non-slip surface with upper grip for safe access.
• Instructional placard integrated; PVC non-slip base supports.
