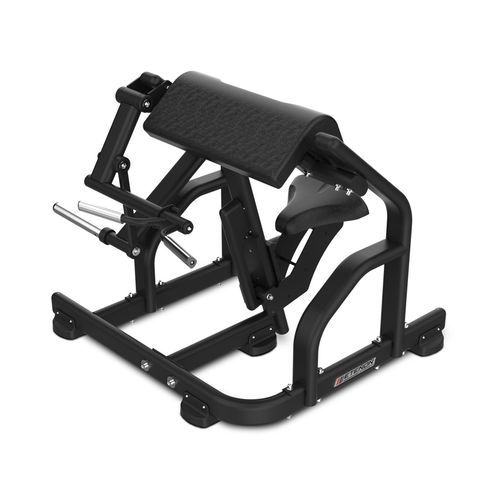

Arm curl gym station PL4013

with free weights

Product overview
The PL4013 biceps curl is a plate-loaded machine engineered for professional and intensive commercial use. Designed with ergonomic biomechanics, it enables a natural, fluid contraction/extension movement that maintains continuous muscle tension for focused biceps training.

Main features

• Reference: PL4013.
• Intended use: Intensive / commercial environments.
• Plate-loaded design with a single chrome loading disc holder (sandblasted finish).
• Ergonomic arm curl support and padded seat with height adjustment to fit different users.
• Comfort aluminum grips for secure contact and control.

Technical specifications

• Frame: Q235 steel oval tube 100 x 50 x 3 mm.
• Finish: matte black powder coating for high resistance.
• Upholstery: matte black FOAM filling, antibacterial and fireproof; density 200 kg/m3.
• Bearings and fasteners: industrial bearings and high-quality screws.
• Base protection: soft non-slip PVC plugs fixed with screws.
• Load holder: 1 chrome loading disc holder with sandblasted texture.

Dimensions and weight

• Length: 115 cm.
• Width: 136 cm.
• Height: 102 cm.
• Machine weight: 118 kg.
• Maximum load capacity: 100 kg (50 kg per holder).

Usage & maintenance

• Suitable for commercial gyms and professional training areas; follow recommended user positioning shown on the integrated pictogram.
• Adjust seat height before each use to ensure proper biomechanics.
• Inspect fasteners and bearings periodically and tighten as needed.
• Clean upholstery with appropriate disinfectant; avoid aggressive solvents on powder-coated surfaces.
